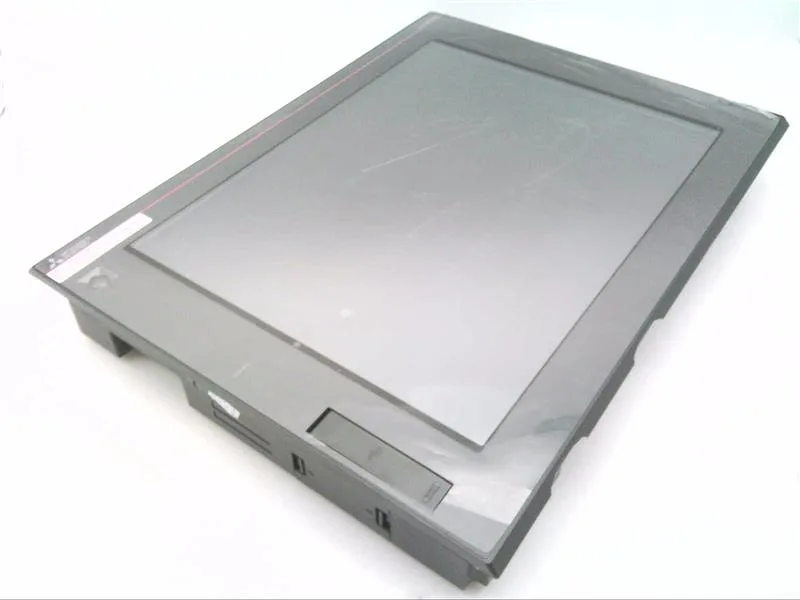

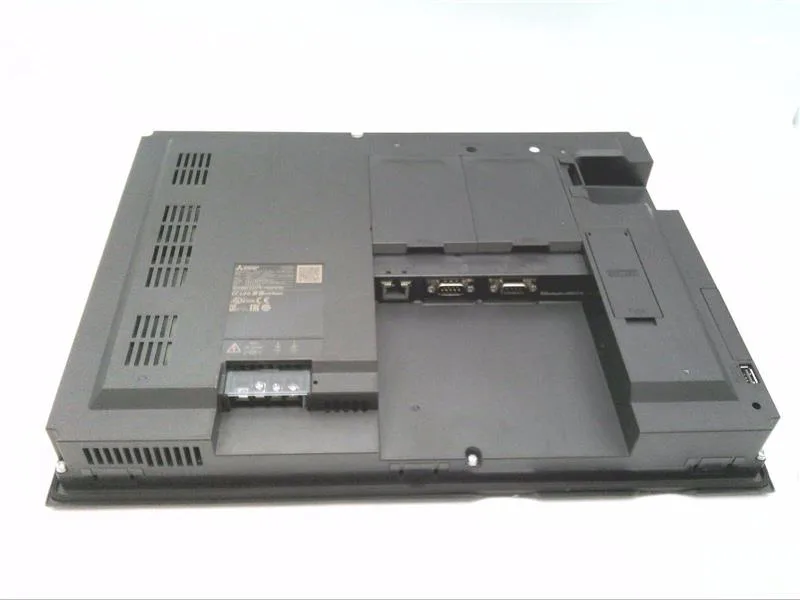

Mitsubishi GT2715-XTBA HMI 15in
MPNGT2715-XTBA
Advanced Model with Multi-Touch Gesture Functions
$4,420.00 – $8,246.43Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | TFT color LCD |
| Battery type | GT11-50BAT lithium battery |
| Product type | Advanced Model With Multi-Touch Gesture Functions |
| Backlight type | LED (not replaceable) |
| Withstand voltage | 1500VAC for 1 minute between power supply terminal and ground |
| Input power supply voltage | 100 to 240VAC (+10%, -15%) |
| Inrush current | 40A or less (3ms, ambient temperature 25°C, maximum load) |
| Power | 100 to 240 V AC |
| Power LED | Emission color: 2 colors (blue, orange) |
| Input power supply frequency | 50/60Hz ±5% |
| Power consumption - stand alone | 25W |
| Power consumption - maximum load | 51W or less |
All specifications
| Parameter | Value |
|---|---|
| Power consumption - stand alone w (Backlight off) | 10W |
| Built-in interface | Maximum transfer speed: High-Speed 480Mbps Connector shape: USB Mini-B |
| Built-in interface RS-232 | 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male) |
| Built-in interface SD card | 1ch SDHC compliant (maximum 32GB) |
| Built-in interface ethernet | 1ch Data transfer method: 10BASE-T/100BASE-TX Connector shape: RJ-45 (modular jack) |
| Built-in interface RS-422/485 | 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female) |
| Built-in interface USB | 2ch (front face/rear face) |
| Built-in interface USB (Device) | 1ch (front face) |
| Built-in interface side interface | For communication unit mounting |
| Built-in interface auxiliary extension i (F) | For option unit mounting |
| Built-in interface extension interface (*6) | For communication unit/option unit mounting |
| Weight excludes mounting brackets | 4.5 Kg |
| Applicable wire size | 0.75 to 2 [mm²] |
| Applicable software package | GT Works3 Version1.112S or later |
| Panel color | Black |
| Display color | TFT color - 65536 colors |
| Display colors | 65536 colors |
| Shipping weight | 8 Kg |
| External dimensions ( w x h x d ) | 39.7 cm x 30 cm x 6 cm |
| External dimensions (w x h x d) | 397 x 300 x 60 |
| Model | Screen size Display section Display color Panel color Power Remarks |
| Remarks | Multimedia & Video/RGB compatible Multi-touch compatible |
| Screen size | 15" XGA |
| Touch panel | Life : 1 million times or more (operating force 0.98N or less) |
| Battery life | Approx. 5 years (ambient temperature 25°C) |
| Manufacturer | Mitsubishi Electric |
| Model number | GT2715-XTBAGT2715-XTBD |
| Buzzer output | Single tone (tone, tone length adjustable) |
| Backlight life | Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) (*4) |
| Noise resistance | Noise voltage 1500Vp-p, noise width 1µs by noise simulator with noise frequency 25 to 60Hz |
| Resolution | 1024 x 768 XGA |
| Estimated lead time | Usually ships in 1-10 working days. |
| Intensity adjustment | 32-level adjustment |
| Number of characters | 16-dot standard font: 64 chars. x 48 lines (2-byte) 12-dot standard font: 85 chars. x 64 lines (2-byte) |
| Insulation resistance | 10MO or higher with an insulation resistance tester (500VDC between power supply terminal and ground) |
| Display size (w x h) | 304.1 x 228.1 |
| Internal clock accuracy | ±90 sec/month (ambient temperature 25°C) |
| Panel cutout (w x h) | 383.5 x 282.5 |
| Protective construction | Front: IP67F (*5,*8) In control panel: IP2X |
| Memory user memory capacity | Memory for storage (ROM): 57MB, Memory for operation (RAM): 128MB |
| Memory life (No. of writings) | 100000 times |
| Human sensor detection temperature | Temperature difference between human body and ambient air: 4°C or higher |
| Human sensor detection distance | 1m |
| Permissible instantaneous failure time | Within 20ms (100VAC or more) |
