What this HMI brings to a panel

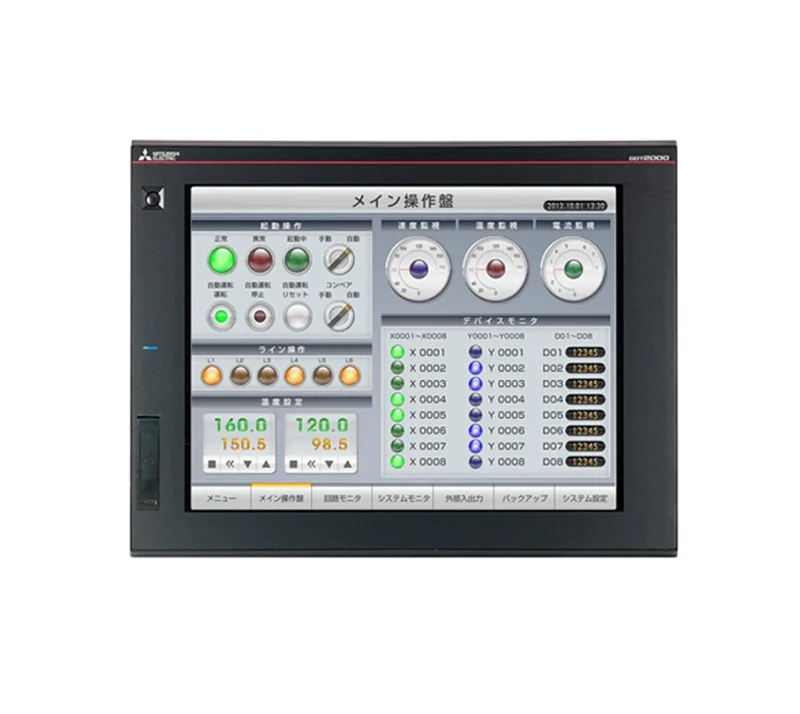

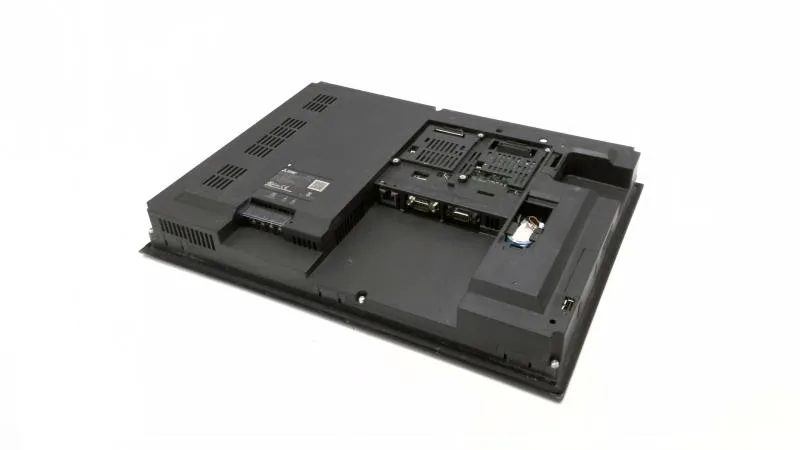

The GT2715-XTBD is a 15" TFT color LCD graphic operation terminal from the Mitsubishi GOT2000 Series, running at XGA resolution (1024 × 768 dots) on an analog resistive film touch panel. It's the large-format workhorse for machine builders who need a clear, responsive interface on a production line — sized for a standard panel cut-out, with the front sealed to IP67F for washdown environments and the interior side rated IP2X. Power is DC24V (accepting +25%/-20%), so it fits 24 VDC control cabinets without an external converter. The built-in human sensor detects an operator approaching within 1 m, which can trigger screen wake or backlight dimming — useful for energy saving on lines that aren't constantly attended.
The POWER LED uses two colors (blue and orange) for quick status at a glance. A single-tone buzzer with adjustable tone and length is built in — no external sounder needed for basic alarm annunciation.
