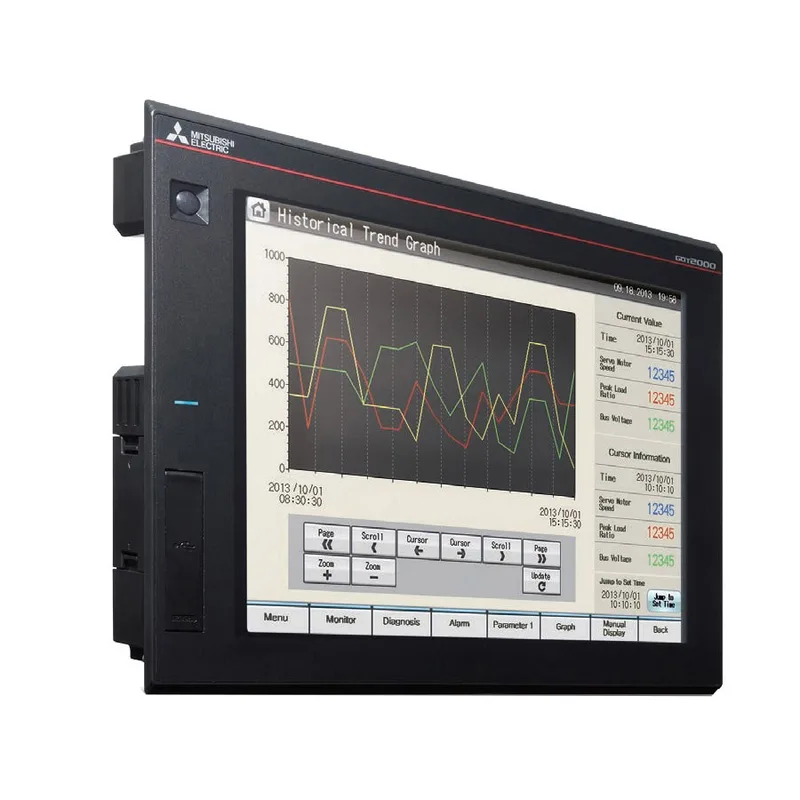

The Mitsubishi GT2715-XTBD-C is a 15-inch TFT color Graphic Operation Terminal from the GT27 series, the advanced line with multi-touch gesture functions. It runs on 24 VDC and delivers XGA resolution. This is the panel-side interface for machine control, line monitoring, and recipe management on Mitsubishi automation systems — the class of HMI that sits between the PLC and the operator, handling screen navigation, alarm logging, and data entry.
The 15-inch TFT color display at XGA resolution gives you 1024 × 768 pixels — enough for detailed process graphics, multiple trend windows, and a numeric keypad overlay without cluttering the screen. Multi-touch gesture support means operators can pinch-zoom into a section of the line or swipe between screens, which reduces button-press fatigue on a shift. The 24 VDC power supply is standard for control panels; you pull this from the same 24 V bus that feeds the PLC and I/O, so no separate AC tap is needed. Communication is handled over Ethernet, RS-422/485, or RS-232 depending on the model variant — the GT2715-XTBD-C carries these interfaces onboard. Ethernet connects to the PLC backbone for fast tag updates; the serial ports handle legacy drives or barcode readers that still run on RS-422 daisy chains.
