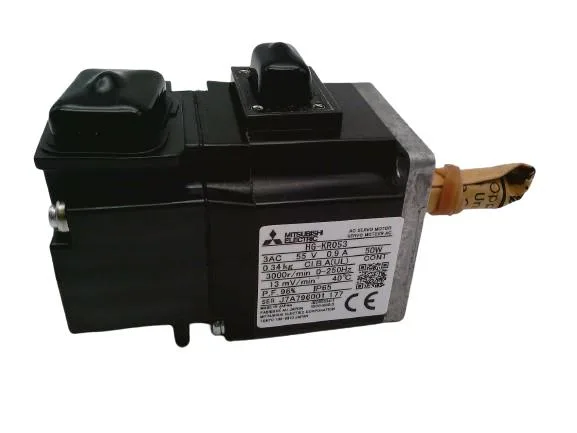

Mitsubishi Electric HG-KR053
MPNHG-KR053
Mitsubishi Servo motor HG-KR053
$219.00 – $308.61Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series name | MELSERVO-J4 series |
| Voltage class | 100V |
| Rated current [A] | 0.9 |
| Maximum current [A] | 3.2 |
| Power supply capacity * 1 [KVA] | 0.3 |
| Power rate at the time of continuous rating torque [KW (s]) | 5.63 |
| The regenerative braking frequency * 2 | MR-J4W_- [Times / min] : 2500 |
| Command interface | SSCNET / H interface : general-purpose interface |
| Vibration class | V10 * 6 |
| Shipping weight | 1.4 Kg |
| Overseas compliance | The correspondence to the international standards and laws, Standards Compliant pageplease refer to. |
| Mass [Kg] | 0.34 |
All specifications+16 ▾
| Parameter | Value |
|---|---|
| Construction | All enclosed self cold (protection rating: IP65) (Note 2) |
| Manufacturer | Mitsubishi Electric |
| Thermal class | 130 (B) |
| Estimated lead time | 7 - 10 Days |
| Maximum torque [N · m] | 0.56 |
| Continuous characteristics | Rated torque (Note 3) [N · m] : 0.16 |
| Speed and position detector | Absolute position incremental shared 22-bit encoder (resolution per rotation servo motor 1: 4194304 pulses / rev) |
| Environmental conditions * 3 | Vibration resistance * 4 : X: 49 M / S 2 Y: 49 M / S 2 |
| Rotary servo motor form name | HG-KR053 |
| Corresponding servo amplifier | General-purpose interface : J4-10A1-MR , : MR-J4-10A1-RJ |
| Axis of the allowable load * 5 | Thrust [N] : 59 |
| Declared engine speed [R (min]) | 3000 |
| Maximum rotational speed [R (min]) | 6000 |
| Moment of inertia j [× 10 -4Kg · m 2] | 0.045 |
| Recommended load inertia moment ratio (Note 1) | 17 times or less |
| Instantaneous allowable rotation speed [R (min]) | 6900 |
MPN
HG-KR053
