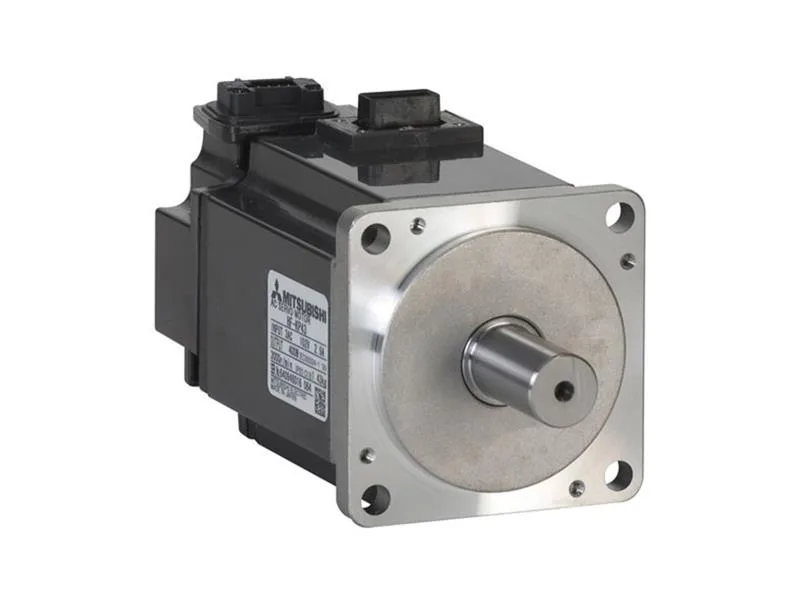

Mitsubishi Electric HG-KR43B
MPNHG-KR43B
Mitsubishi Servo motor HG-KR43B
$737.00 – $930.91Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series name | MELSERVO-J4 series |
| Voltage class | 200V |
| Rated current [A] | 2.6 |
| Maximum current [A] | 9.1 |
| Power supply capacity * 1 [KVA] | 0.9 |
| Continuous characteristics rated output [KW] | 0.4 |
| Power rate at the time of continuous rating torque [KW (s]) | 41.3 |
| The regenerative braking frequency * 2 | MR-J4- [Times / min] : 268 |
| Command interface | CC-Link IE field network interface SSCNET / H interface 2-axis integrated SSCNET / H interface 3-axis integrated SSCNET / H interface general-purpose interface |
| SSCNET (H interface) | J4-40B-MR MR-J4-40B-RJ |
| General-purpose interface | J4-40A-MR MR-J4-40A-RJ |
| 2-axis integrated SSCNET / h interface | J4W2-44B-MR MR-J4W2-77B MR-J4W2-1010B |
All specifications+29 ▾
| Parameter | Value |
|---|---|
| 3-axis integrated SSCNET / h interface | MR-J4W3-444B |
| Vibration class | V10 * 6 |
| Ambient humidity | Operation: 80% RH or less (non-condensing), storage: 90% RH or less (non-condensing) |
| Vibration resistance * 4 | X: 49 M / S 2 Y: 49 M / S 2 |
| Shipping weight | 3 Kg |
| Overseas compliance | The correspondence to the international standards and laws, Standards Compliant pageplease refer to. |
| Oil seal | None (servo motor with an oil seal is also available. (HG-KR_J)) |
| Elevation | Above sea level 2000 m or less |
| Mass [kg] | 1.8 |
| Atmosphere | Indoors (no direct sunlight), that there is no corrosive gas, flammable gas, oil mist, dust and dirt |
| Radial [N] | 245 |
| Thrust [N] | 98 |
| Construction | All enclosed self cold (protection rating: IP65) (Note 2) |
| Manufacturer | Mitsubishi Electric |
| Thermal class | 130 (B) |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| MR-J4W_- [Times / min] | 268 |
| Maximum torque [N · m] | 4.5 |
| Speed and position detector | Absolute position incremental shared 22-bit encoder (resolution per rotation servo motor 1: 4194304 pulses / rev) |
| Environmental conditions * 3 | Ambient temperature : Operation: 0 ° C ~ 40 ° C (no freezing), storage: -15 ° C ~ 70 ° C (no freezing) |
| Rotary servo motor form name | HG-KR43B |
| Corresponding servo amplifier | CC-Link IE field network interface : J4-40GF-MR MR-J4-40GF-RJ MR-J4-40B-RJ010 |
| Axis of the allowable load * 5 | L [Mm] : Thirty |
| Rated torque (Note 3) [N · m] | 1.3 |
| Declared engine speed [R (min]) | 3000 |
| Maximum rotational speed [R (min]) | 6000 |
| Moment of inertia j [× 10 -4Kg · m 2] | 0.393 |
| Recommended load inertia moment ratio (Note 1) | 25 times or less |
| Instantaneous allowable rotation speed [R (min]) | 6900 |
