Mitsubishi Electric HG-MR13

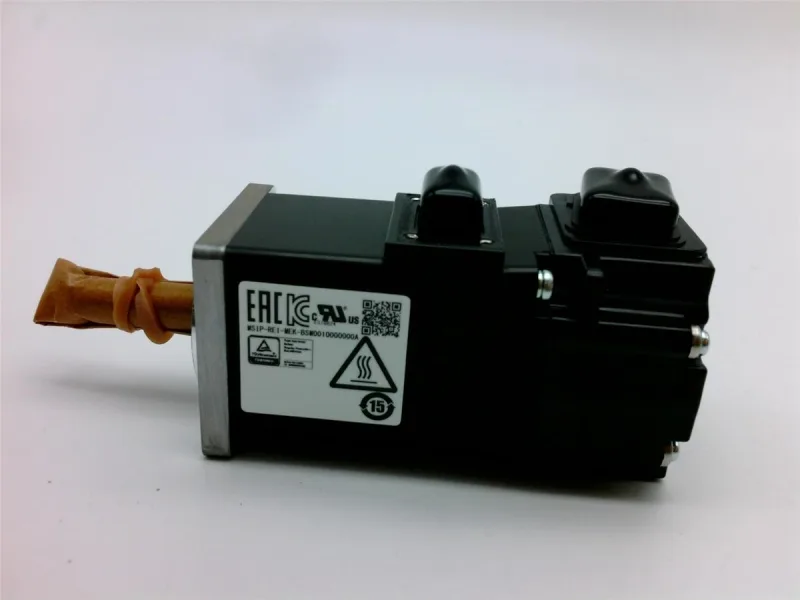

Mitsubishi HG-MR13 Servo Motor, 0.1 kW, 3000 r/min, with Bra

MPN HG-MR13

Mitsubishi HG-MR series, Servo Motor, HG-MR13, 0.1 kW rated output, 3000 r/min rated speed, with electromagnetic brake.

$332.74 – $703.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

HG-MR13 specifications
ParameterValue
SeriesHG-MR - Ultra-Low inertia/Small capacity
Product typeServo Motor

Product details

The HG-MR13 is a servo motor from Mitsubishi's HG-MR series, classified as Ultra-Low inertia/Small capacity. It delivers a rated output of 0.1 kW at a rated speed of 3000 r/min, placing it in the smallest power tier of the family — sized for light positioning axes, small pick-and-place arms, or tension-control stages where the load inertia is low and acceleration matters more than raw torque. This variant includes an electromagnetic brake (suffix B), which holds the motor shaft at rest when power is removed. On a 0.1 kW frame the brake adds axial length and a DC power requirement; verify the holding torque against the static load before specifying, because the brake is sized for the motor's own rated torque, not for an external overhung load.

Integration Notes

The 3000 r/min rated speed is typical for a small-capacity servo running on a 200 V-class drive. If the application runs below 500 r/min for extended periods, check the continuous torque derating curve — the motor's cooling fan (if shaft-mounted) loses efficiency at low speed, and the brake's duty cycle may need to be factored in.

MPN
HG-MR13
