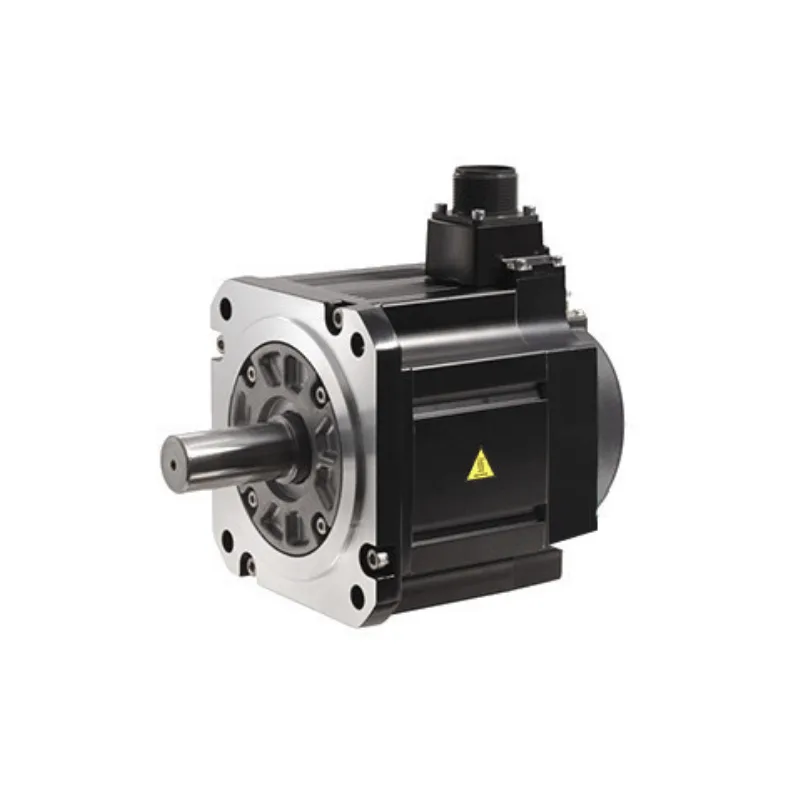

The Mitsubishi Electric HG-SN202BJ-S100 is a 2.0 kW servo motor from the HG-SN series, rated for 2000 r/min with a continuous torque of 9.55 N·m. It includes an electromagnetic brake for holding vertical loads and an oil seal for protection in oily environments. The IP67 enclosure allows direct installation in washdown or dusty areas without a separate cabinet.
Key Ratings & Fit
Rated current 9.6 A and maximum current 31 A define the drive sizing and cable ampacity. Instantaneous permissible speed 3450 r/min gives a safety margin above the 3000 r/min max operating speed. Vibration rank V10 suits precision applications. Insulation class F (155 °C) provides margin in elevated ambient conditions up to 40 °C.
Installation Envelope
Totally enclosed naturally cooled design – no external fan, so clearances for airflow are minimal. IP67 rating holds for washdown and dust; verify cable gland selection maintains seal. Altitude limit 2000 m; above that, derate output or increase cooling as per standard motor practice. Operating temperature 0–40 °C, non-condensing; storage range -15–70 °C.
