Mitsubishi HG-SR152 servo motor, 200V class, rated for 1.5 kW continuous output. Torque rating sits at 7.2 Nm continuous, with a peak of 21.5 Nm available for acceleration. Full-load current draws 9.4 A, inrush from the drive limited to 29 A. Power supply requirement is 2.5 kVA.

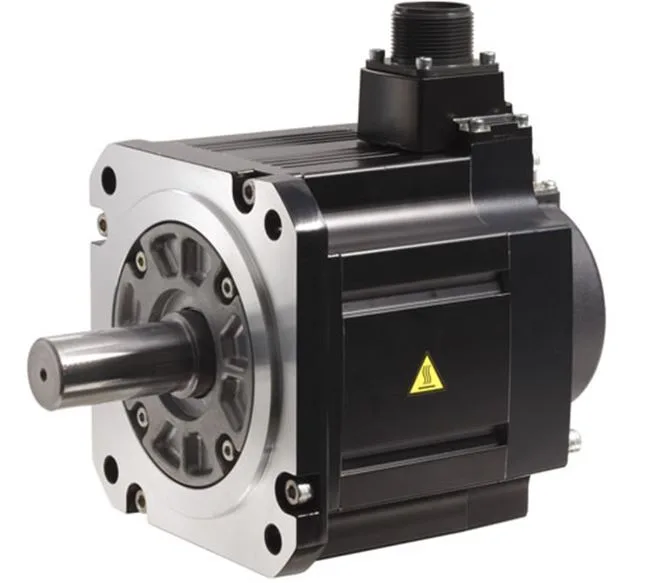

Mitsubishi HG-SR152 Servo Motor, 1.5 kW, 200V
MPNHG-SR152
Mitsubishi HG-SR152 Servo Motor, 200V class, 1.5 kW, 7.2 Nm rated torque, 9.4 A rated current.
$830.58 – $1,060.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Servo motor |
| Voltage class | 200V |
| Rated current [A] | 9.4 |
| Maximum current [A] | 29 |
| Rated torque [N â· m] | 7.2 |
| Maximum torque [N â· m] | 21.5 |
| Power supply capacity * 1 [KVA] | 2.5 |
| Moment of inertia j [ã 10 -4 kg â· m 2 ] | 16.0 |
| Continuous characteristics rated output [KW] | 1.5 |
Product details
MPN
HG-SR152
