Mitsubishi Electric HG-SR301BJK

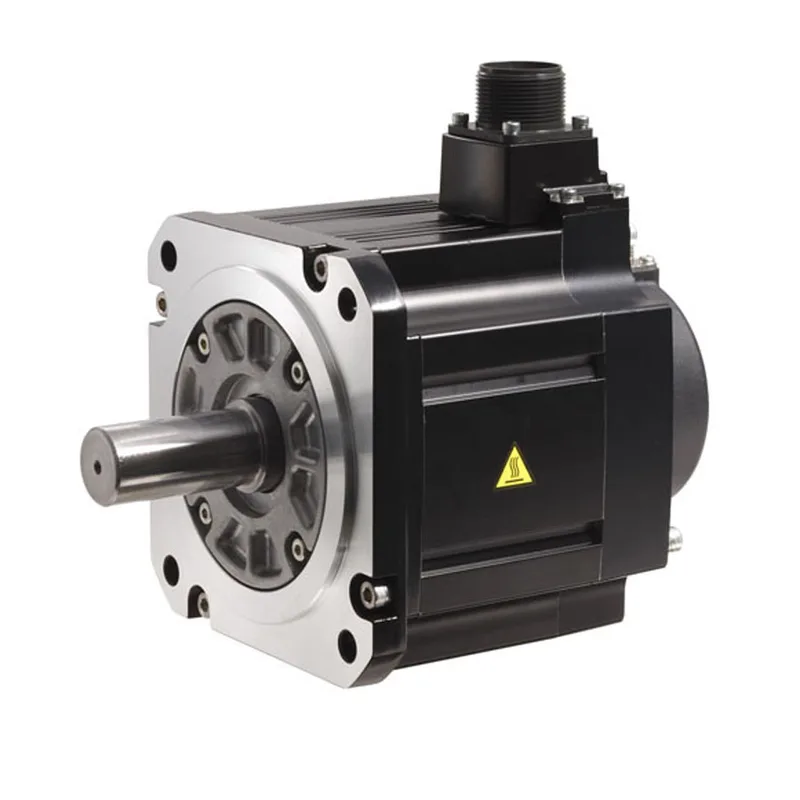

Mitsubishi HG-SR301BJK Servo Motor, 3.0 kW, 1000 rpm

MPN HG-SR301BJK

Mitsubishi HG-SR Series rotary servo motor, HG-SR301BJK, 3.0 kW, 1000 rpm rated speed, 85.9 Nm maximum torque, 26 kg.

$3,455.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

HG-SR301BJK specifications
ParameterValue
Product typeHG-SR Series Rotary Servo Motor
Weight26 Kg

Product details

The Mitsubishi HG-SR301BJK is a 3.0 kW rotary servo motor from the HG-SR Series, spinning at a rated 1000 r/min and capable of 85.9 N·m peak torque. That torque density — 85.9 N·m from a 3.0 kW frame — tells you this motor is wound for high torque at low speed, not high-speed spindle work. It pulls 4.8 kVA from the supply at full load, so factor that into the drive sizing and the DC bus capacitance on the servo amplifier side.

Wiring and termination notes

Power and ground conductors (U, V, W) take 3.5 mm² (AWG 12) in a general environment. The electromagnetic brake pair (B1, B2) uses 0.5 mm² (AWG 20). That brake wire gauge is light — verify the brake current draw against the drive's brake output rating; if the cable run exceeds a few metres, step up to 0.75 mm² to keep voltage drop under control during hold.

MPN
HG-SR301BJK
