7.0 kW Servo Motor with Oil Seal — HG-SR Series

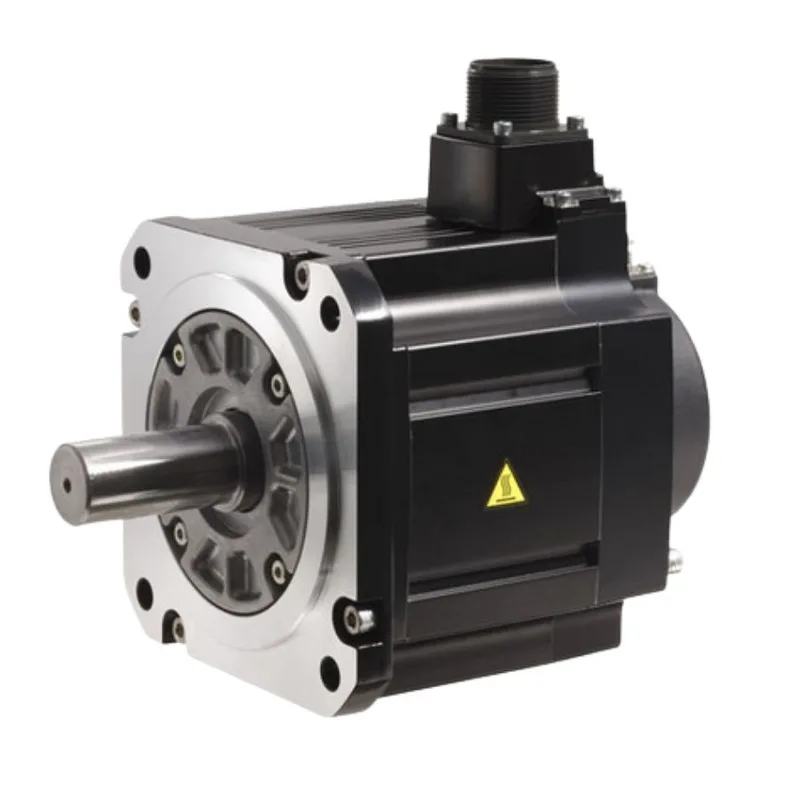

The HG-SR702J is a 7.0 kW AC servo motor from the HG-SR series, rated 2000 r/min base speed with a 26 A continuous current draw and 100 N·m peak torque capability. The J suffix means it ships with an oil seal — this is the variant you want when the motor couples to a gearbox or spindle where lubricant could migrate along the shaft. Vibration rank is V10 and insulation is Class 155(F) — standard industrial servo spec. The V10 grade keeps vibration low enough for precision positioning applications like machining centres or pick-and-place gantries.
Physical Fit and Mounting Constraints
Ambient environment must be indoors, free from direct sunlight, corrosive gas, flammable gas, oil mist, dust, and dirt. The oil seal handles incidental lubricant contact at the shaft, but the motor body is not rated for washdown or outdoor exposure.
Lifecycle and Sourcing Reality
Sourced to order against your BOM quantity. Availability and current pricing confirmed at RFQ — no stock-holding claim on this page, but the supply channel is established for current-production Mitsubishi servo motors.
