Mitsubishi Electric L61P-CM — PLCs (Programmable Logic Controllers)

Mitsubishi L61P-CM Programmable Controller, 100-240VAC, 5A 5

MPNL61P-CM

Mitsubishi L61P-CM Programmable Controller, 100-240VAC input, 5A @ 5VDC output, 130VA max apparent power, 2 kg shipping weight.

$124.00Ref. price · indicative, final on quote
Mitsubishi Electric L61P-CM datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

L61P-CM — Specifications
ParameterValue
Product typeProgrammable Controller
Inrush current20A, within 8ms
Input frequency50/60Hz (-5% to +5%)
Input power supply100 to 240VAC (-15% to +10%)
Input voltage distortionWithin 5%
Rated output current (5VDC)5A
Maximum input apparent power130VA

Product details

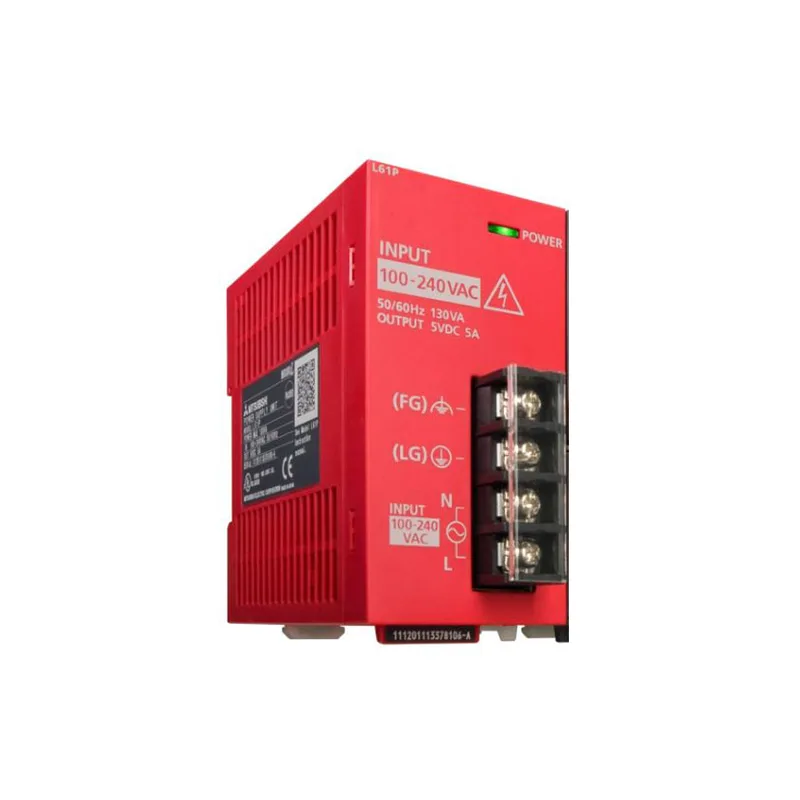

The L61P-CM is a programmable controller power supply module from Mitsubishi, designed to deliver a regulated 5 VDC bus to a PLC rack or control system. It accepts a wide AC input — 100 to 240 VAC (-15% to +10%) at 50/60 Hz (±5%) — and provides a rated output current of 5 A at 5 VDC, with a maximum input apparent power of 130 VA. Inrush current is limited to 20 A within 8 ms, which helps avoid nuisance breaker trips during power-up.

The 5 A at 5 VDC output powers the PLC backplane and modules on the 5 V rail. The 130 VA apparent power rating governs upstream breaker and wiring sizing. Input voltage distortion must stay within 5%.

MPN
L61P-CM
