What it is and what it does in the rack
The Mitsubishi LD75P2 is a 2-axis positioning controller that drops into a MELSEC rack as a PLC expansion module, integrating coordinated axis motion control into the host programmable logic controller system.

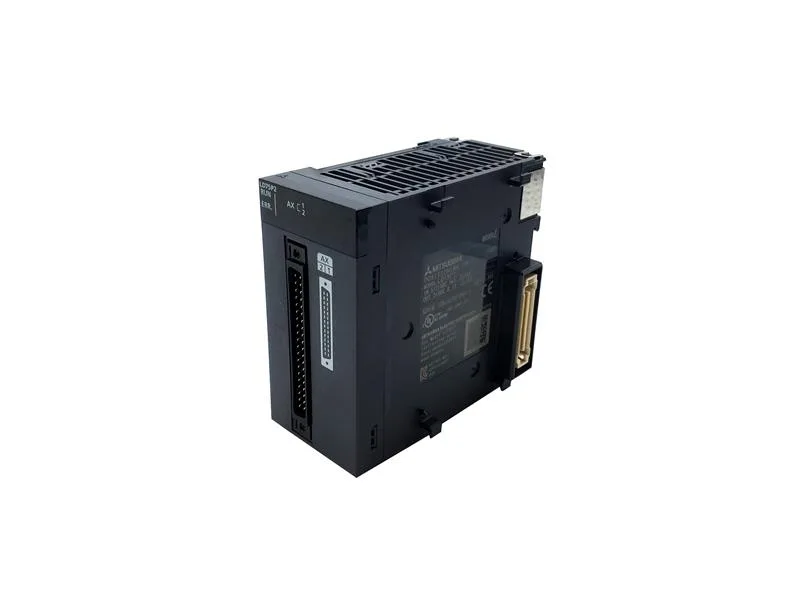

Mitsubishi LD75P2 PLC Positioning Module, 2-Axis
MPNLD75P2
Mitsubishi LD75P2, MELSEC series 2-axis positioning controller for PLC expansion modules, current lifecycle stage, 1.36 kg.
$830.58Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Weight | 1.36 kgs |
Product details
Frequently asked questions
When sourcing the LD75P2, what is the closest functional second source — the QD70P8?
Both are Mitsubishi MELSEC PLC expansion modules in the same category, so the QD70P8 is the natural cross-shop candidate; the LD75P2 weighs 1.36 kg versus 1.03 kg on the QD70P8, which signals a different frame, not a same-footprint alternate.
Will the LD75P2 drop into a panel that was specified around the QD70P8 without rewiring?
No — same category does not mean interchangeable. The weight gap between the LD75P2 (1.36 kg) and the QD70P8 (1.03 kg) is large enough to indicate a different frame, so backplane mounting, axis count and any pre-wired connectors have to be reconciled against the original panel layout before substituting.
MPN
LD75P2
