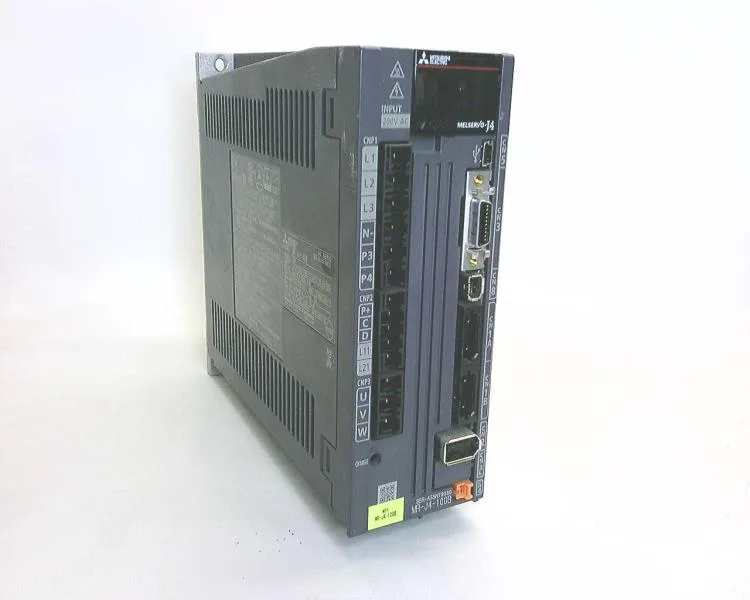

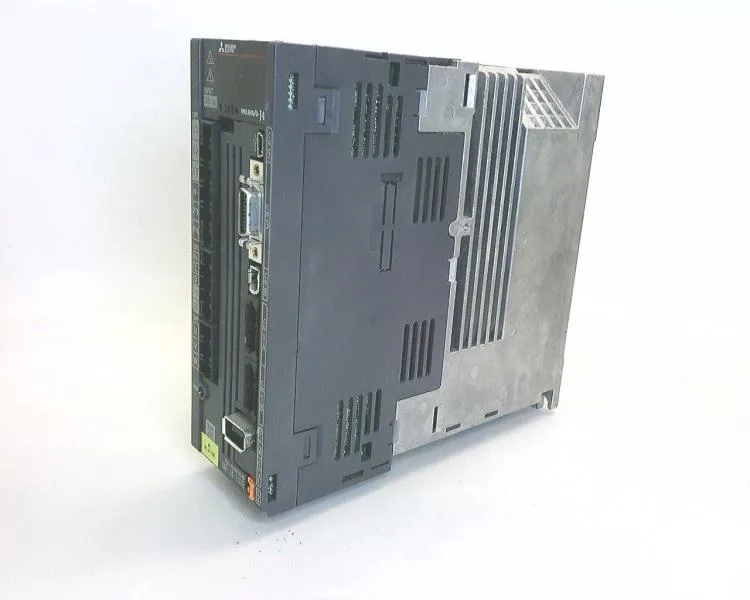

Mitsubishi Electric MR-J4-100B

Mitsubishi MR-J4-100B MELSERVO-J4 Servo Amplifier, 1 kW, 200

MPN MR-J4-100B

Mitsubishi MELSERVO-J4 series, MR-J4-100B servo amplifier, 1 kW capacity, 200V class, SSCNET III/H interface, built-in dynamic brake, STO functional safety.

$420.00 – $1,097.28 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

MR-J4-100B specifications
ParameterValue
Product typeMELSERVO-J4 series
Temp operating max65 °C
Temp operating min-20 °C
Weight1.4 Kg
Capacity1 kW

Product details

Drive selection memo — MR-J4-100B

The Mitsubishi MR-J4-100B is a 1 kW servo amplifier in the MELSERVO-J4 series, rated for 200V class input (three-phase or single-phase AC 200 V to 240 V, 50/60 Hz) and delivering a continuous output current of 6.0 A at three-phase AC 170 V. It communicates over SSCNET III/H at selectable cycle times of 0.222 ms, 0.444 ms, or 0.888 ms, which sets the position-loop update rate for the motion bus. The built-in dynamic brake stops the motor shaft on a servo-off or fault condition without an external braking resistor for most inertial loads within the 1 kW rating. Functional safety is covered by STO (Safe Torque Off) per IEC/EN 61800-5-2, with a response time of 8 ms or less from STO input off to energy cutoff and a diagnostic coverage (DC) of 97.6% (medium).

Panel integration & wiring

IP20 open-frame construction means the amplifier is intended for enclosure mounting with cooling airflow. The main circuit draws 5.0 A rated input current; the control circuit pulls 0.2 A from the DC 24 V ±10% interface supply (0.3 A including the CN8 connector signal). Two analog monitor channels are available for outputting velocity, torque, or position signals to a scope or PLC analog input. The encoder interface uses Mitsubishi high-speed serial communication; encoder output pulses (ABZ phase) are available for external position feedback or master-slave gearing.

Overseas compliance standards are listed per the manufacturer's conformity product page. The amplifier is designed for indoor use only, at altitudes up to 2000 m, in atmospheres free of corrosive gas, inflammable gas, oil mist, and dust. Vibration tolerance is 5.9 m/s² from 10 Hz to 55 Hz in X, Y, Z directions.

MPN
MR-J4-100B
