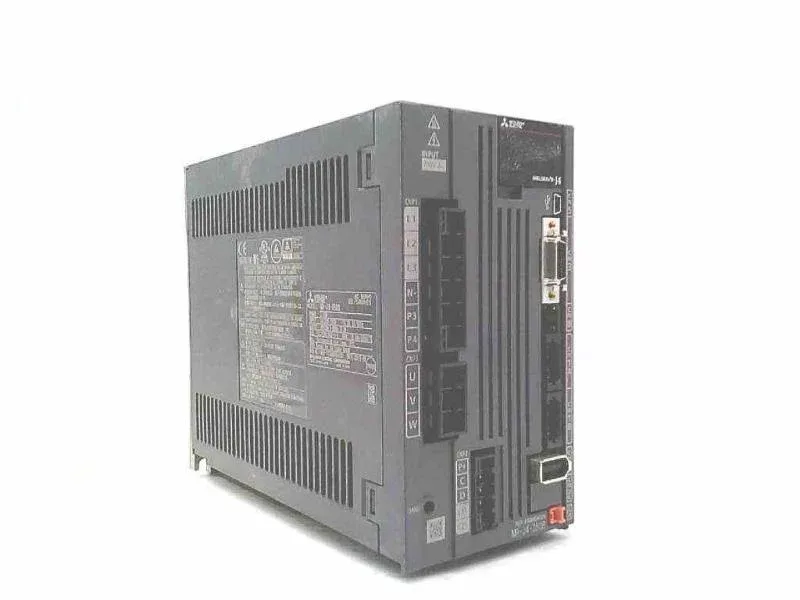

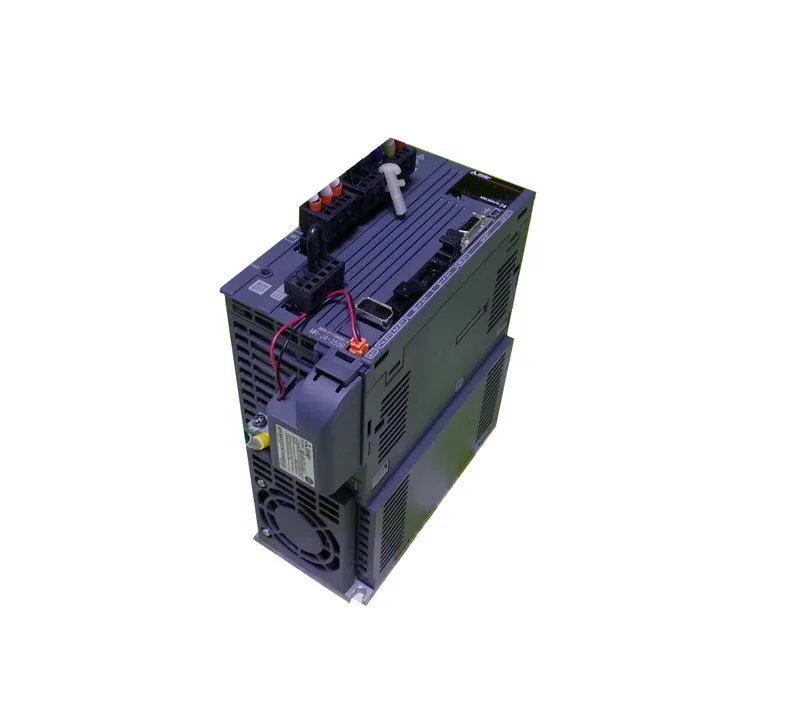

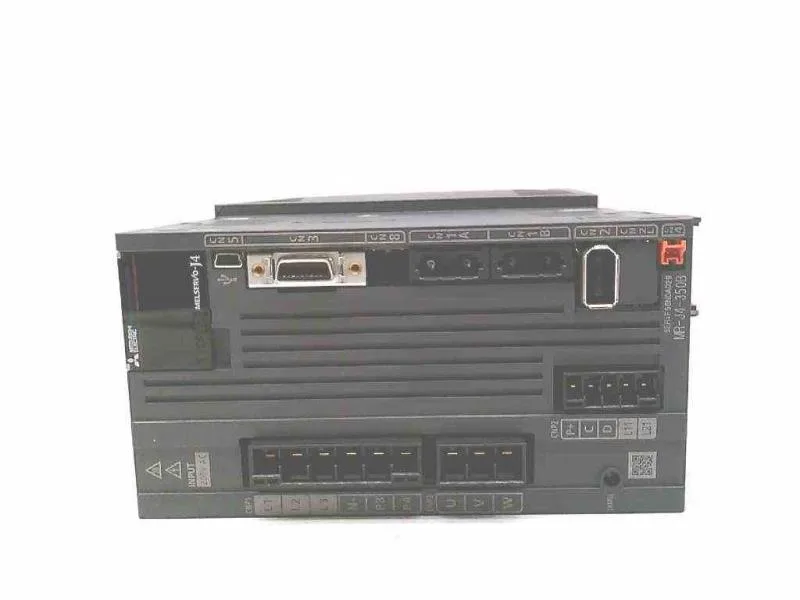

Mitsubishi Electric MR-J4-350B — Servo Drives

Mitsubishi MR-J4-350B Servo Amp, 17.0 A, 3-Phase 200-240V

MPNMR-J4-350B

Mitsubishi MR-J4-350B 1-Axis Servo Amplifier, 17.0 A rated, 3-phase 200-240 VAC main input, sinusoidal PWM control.

$1,212.00 – $2,931.83Ref. price · indicative, final on quote
Mitsubishi Electric MR-J4-350B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

MR-J4-350B — Identification
ParameterValue
Product type1-Axis Servo Amplifiers
MR-J4-350B — Other specifications
ParameterValue
Weight2.3 Kg
Current[A] : 0.2
Control methodSinusoidal wave PWM control and current control system
Power consumption[W] : 30
Interface for powerDC24 V ± 10% (required current capacity: 0.3 A (including CN8 connector signal))
Output rated voltage3-phase 170 VAC
Voltage and frequencySingle-phase AC200 V ~ 240 V, 50 Hz / 60 Hz
Allowable voltage fluctuationSingle-phase AC170 V ~ 264 V
Allowable frequency fluctuationWithin ± 5%
Main circuit power supply Voltage/Frequency (*1, *2)3-phase 200 VAC to 240 VAC, 50/60 Hz

Product details

Mitsubishi MR-J4-350B is a 1-axis servo amplifier from the J4 series, rated 17.0 A continuous output to drive a motor on 3-phase 170 VAC. Main circuit supply is 3-phase 200-240 VAC, 50/60 Hz, with allowable fluctuations of single-phase 170-264 VAC for the control section. Control method uses sinusoidal wave PWM with a current control system, giving smooth torque down to low speeds. Power consumption is 30 W, so panel thermal analysis should account for that heat load. Control power comes from a dedicated DC 24 V ± 10 % supply drawing 0.3 A (including the CN8 connector signal). That supply is separate from the main power bus.

Integration notes

Main circuit supply: 3-phase 200 VAC to 240 VAC, 50/60 Hz. Motor output: 3-phase 170 VAC. Control power on CN8: DC24 V ± 10%, 0.3 A.

MPN
MR-J4-350B
