The Mitsubishi MR-JE-100A is a servo amplifier in the MR-JE-_A series, rated for 6.0 A continuous output current. It accepts 3-phase or 1-phase 200 V AC to 240 V AC at 50/60 Hz. That 6.0 A rating tells you the motor current it can deliver continuously — match it to the servo motor's rated current on the nameplate, not the peak. The built-in dynamic brake means you don't need an external braking resistor for stopping the load under normal deceleration; for vertical or high-inertia loads, confirm the brake's energy absorption matches your cycle.

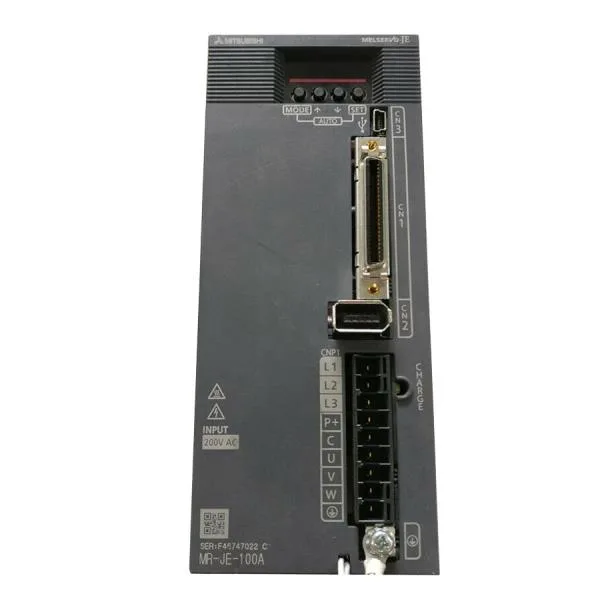

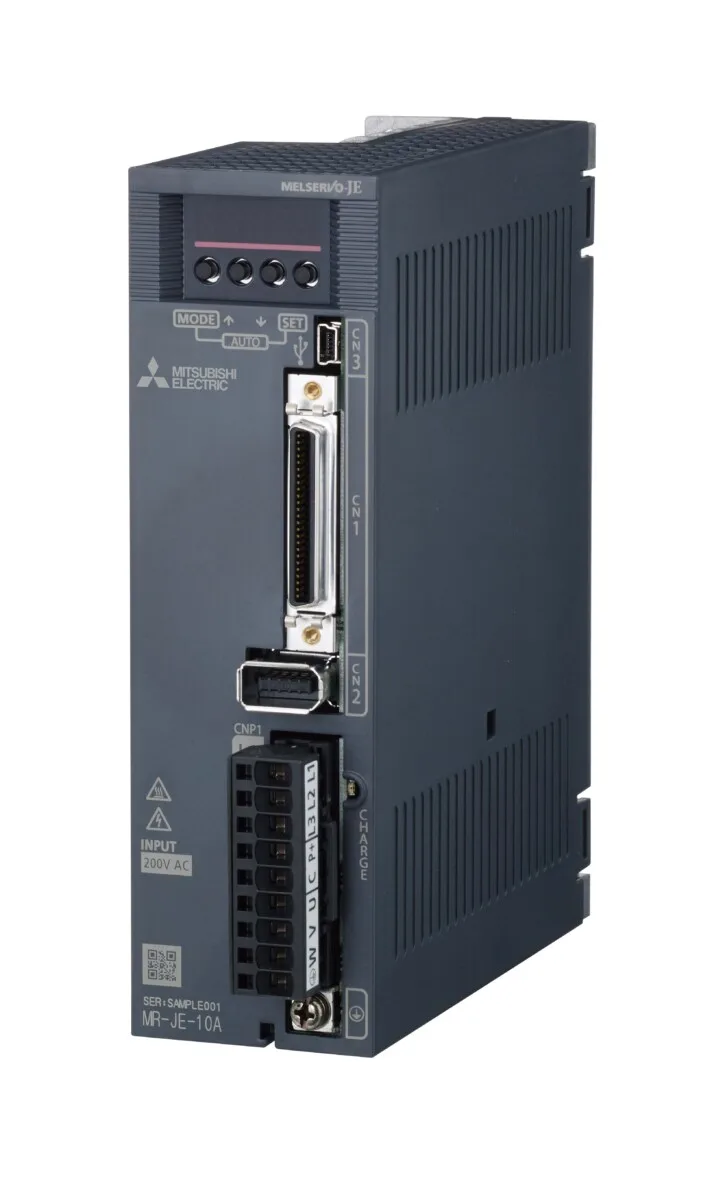

Mitsubishi MR-JE-100A Servo Amplifier, 6.0 A, 200-240 VAC
MPNMR-JE-100A
Mitsubishi MR-JE-_A Servo Amplifier, MR-JE-100A, 6.0 A rated output, 200-240 VAC 3-phase/1-phase input, built-in dynamic brake, IP20, 1.5 kg.
$381.00 – $949.96Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | MR-JE-_A Servo Amplifier |
| Parameter | Value |
|---|---|
| Weight | 1.5 Kg |
| Dynamic brake | Built-in |
| Control method | Sine-wave PWM control, current control method |
| Structure (IP rating) | Natural cooling, open (IP20) |
| Output rated current [A] | 6.0 |
| Power supply input voltage (Frequency) | 3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz (Note 6) |
Product details
Frequently asked questions
Where can I buy MR-JE-100A and how is it quoted?
We supply MR-JE-100A through our independent distribution channel. Pricing and availability are confirmed at quote time against an RFQ — no stock count or price is listed here, but we can quote firm lead times and terms on request.
What is the output current rating of MR-JE-100A?
The MR-JE-100A is rated for 6.0 A continuous output current. That is the current it delivers to the servo motor under rated load.
Does MR-JE-100A have a built-in dynamic brake?
Yes, the dynamic brake is built into the amplifier. No external braking resistor is required for normal stopping, but verify energy absorption for vertical or high-inertia loads.
