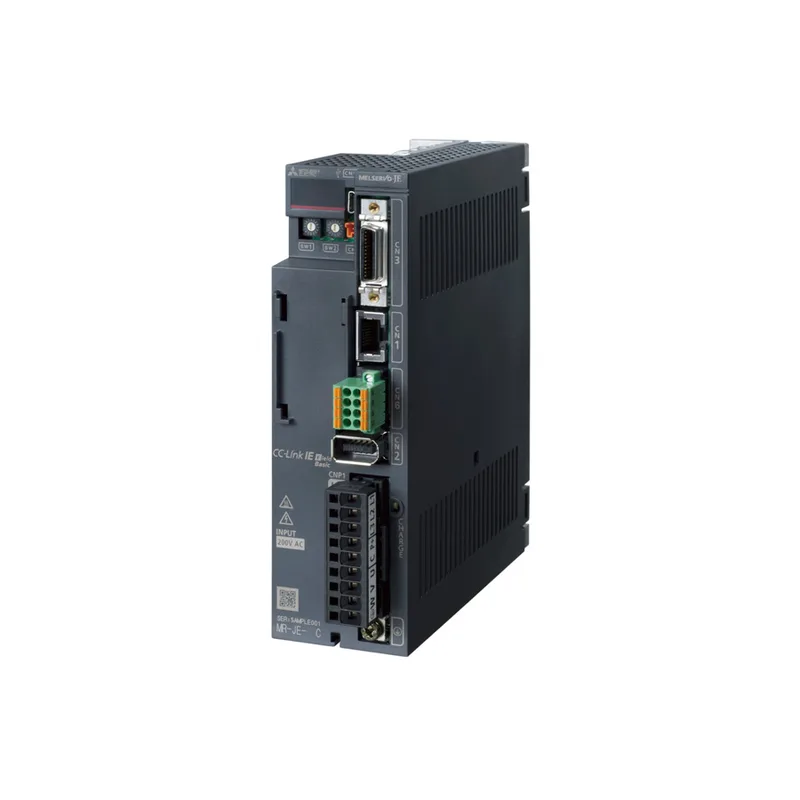

The Mitsubishi MR-JE-200C is a digital AC-servo amplifier rated for 2 kW continuous output, designed to drive a single servo motor on a 200-240 VAC supply — single-phase or three-phase, same input range. The 2 kW figure governs the motor it can pair with; match it to a servo motor of equal or slightly lower rated capacity for the torque-speed curve the application needs.
The amplifier measures 168 mm high, 90 mm wide, and 195 mm deep. That 195 mm depth is the critical dimension for cabinet clearance — the unit needs that much space behind the mounting plate for the heat sink and connector clearance. The 90 mm width fits a standard 100 mm DIN-rail pitch; plan for at least 10 mm of air gap on each side for convective cooling.
What the 2 kW rating means in practice
The 2 kW rated capacity is the continuous output power the amplifier can deliver to the motor under rated conditions. It determines the maximum continuous torque the motor can produce at rated speed. For a 2 kW servo motor, this amplifier provides the full rated torque continuously; for a smaller motor, it offers headroom for short-duration overloads. The single-axis control (one amplifier, one motor) is the standard building block for point-to-point positioning, indexing, or speed control in a single motion axis.
