The Mitsubishi MR-JE-20A is a 200 W servo amplifier from the MR-JE-_A series, rated at 1.5 A continuous current. It uses sine-wave PWM current control and includes a built-in dynamic brake — that brake handles the motor's kinetic energy during a rapid stop or E-stop, so you don't need an external resistor pack for most 200 W applications. Power input is 200-240 VAC, single- or three-phase, 50/60 Hz, which covers standard Asian and North American line voltages. The IP20 open-frame construction means it's meant for a clean, dry cabinet — not washdown or outdoor duty.

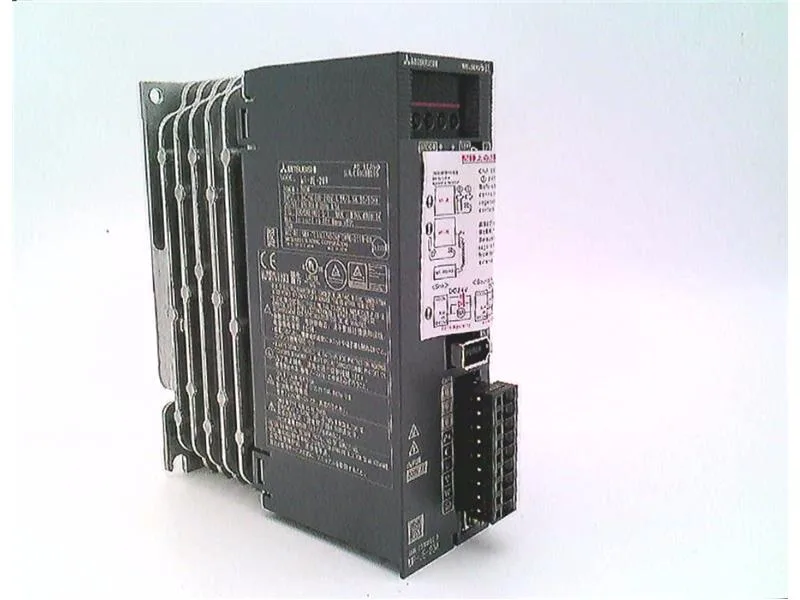

Mitsubishi MR-JE-20A Servo Amplifier, 200W, 1.5A, IP20
MPNMR-JE-20A
Mitsubishi MR-JE-_A series servo amplifier, 200W output, rated current 1.5 A, built-in dynamic brake, IP20, 200-240 VAC 1/3-phase input.
$72.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | MR-JE-_A Servo Amplifier |
| Parameter | Value |
|---|---|
| Weight | 0.8 Kg |
| Dynamic brake | Built-in |
| Control method | Sine-wave PWM control, current control method |
| Rated current [A] | 1.5 |
| Structure (IP rating) | Natural cooling, open (IP20) |
| Power supply input voltage (Frequency) | 3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz |
Product details
Frequently asked questions
How do I get current pricing and availability for MR-JE-20A?
Pricing and availability are confirmed at quote time. Submit an RFQ for the MR-JE-20A and we'll provide current pricing and lead time.
What is MR-JE-20A's rated current?
The MR-JE-20A is rated at 1.5 A continuous current, which corresponds to a 200 W servo motor output.
What power supply does MR-JE-20A need?
It accepts 200-240 VAC, single-phase or three-phase, 50/60 Hz. That covers standard Asian and North American line voltages.
Does MR-JE-20A have a built-in dynamic brake?
Yes, the MR-JE-20A includes a built-in dynamic brake, which absorbs motor kinetic energy during rapid stops — no external resistor needed for most 200 W applications.
MPN
MR-JE-20A
