Mitsubishi Electric NZ2GF2BN-60AD4 — PLC Communication Modules

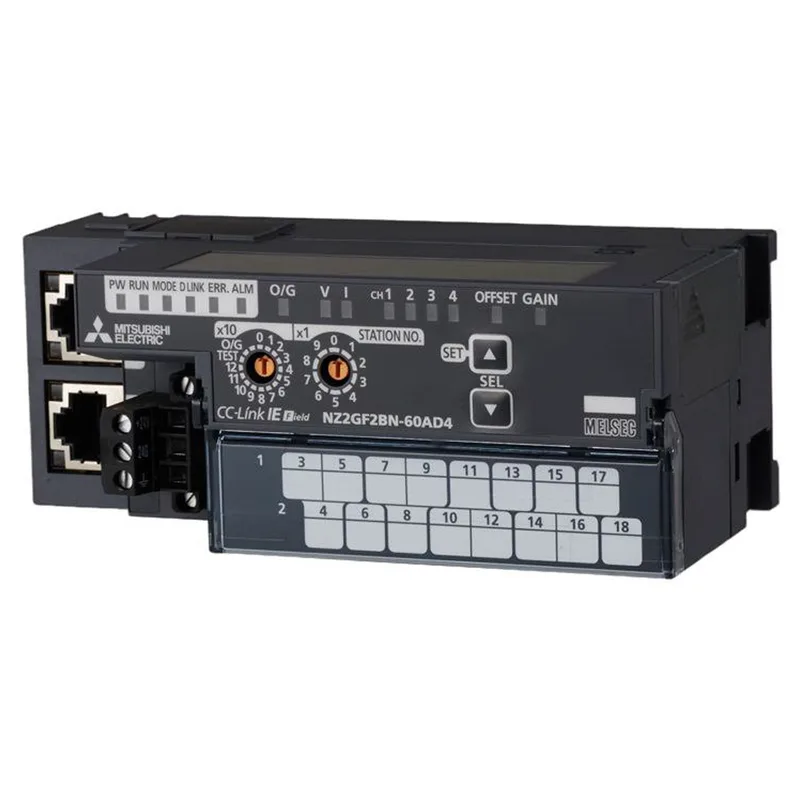

Mitsubishi NZ2GF2BN-60AD4 A/D Module, 4 Ch

MPNNZ2GF2BN-60AD4

Mitsubishi NZ2GF2BN-60AD4 main A/D converter module, 4-channel analog input, voltage -10 to 10 VDC and current 0 to 20 mADC.

$553.72 – $1,014.00Ref. price · indicative, final on quote
Mitsubishi Electric NZ2GF2BN-60AD4 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

NZ2GF2BN-60AD4 — Specifications
ParameterValue
Weight0.31 Kg
I (O part)18-point two-piece terminal block (M3 screw), Tightening torque range for terminal screw (M3 screw x 5.2): 0.43 to 0.57Nm
Analog inputVoltage ; -10 to 10VDC (input resistance 1M ohm), Current ; 0 to 20mADC (input resistance 250 ohm)
Product typeMain A/D Converter Module
Station type4 points (4 channels)/module
Digital output16-bit signed binary (-16384 to 16383)
Withstand voltageBetween all power supply and communication system terminals and all analog input terminals 500VAC for 1 minute
Communication partRJ45 Connector
Applicable DIN railTH35-7.5Fe, TH35-7.5Al (compliant with IEC 60715)
Between input channelsNon-isolation
Module power supply partTerminal block for module power supply and FG, Tightening torque range for terminal screw (M2.5 screw): 0.5 to 0.6Nm
Between power supply system terminal and all analog input terminalsTransformer isolation
Between communication system terminal and all analog input terminalsPhotocoupler isolation

Product details

The NZ2GF2BN-60AD4: The terminal block is an 18-point two-piece M3 screw type; tightening torque range is 0.43 to 0.57 Nm. The separate module power supply terminal uses M2.5 screws with a torque range of 0.5 to 0.6 Nm. Communication is via an RJ45 connector. Isolation between power supply and analog inputs is transformer type; between communication and analog inputs is photocoupler type. Input channels are non-isolated from each other.

Withstand voltage between power/communication terminals and analog input terminals is 500 VAC for 1 minute. No special grounding beyond standard panel practice is required, but note the isolation boundaries for troubleshooting.

Frequently asked questions

What is the module weight?

The NZ2GF2BN-60AD4 weighs 0.31 kg (unit) and 1.5 kg shipping weight.

What terminal block and torque specs are used?

The I/O uses an 18-point two-piece M3 screw terminal block with a tightening torque of 0.43 to 0.57 Nm. The module power supply terminal uses an M2.5 screw with torque 0.5 to 0.6 Nm.
