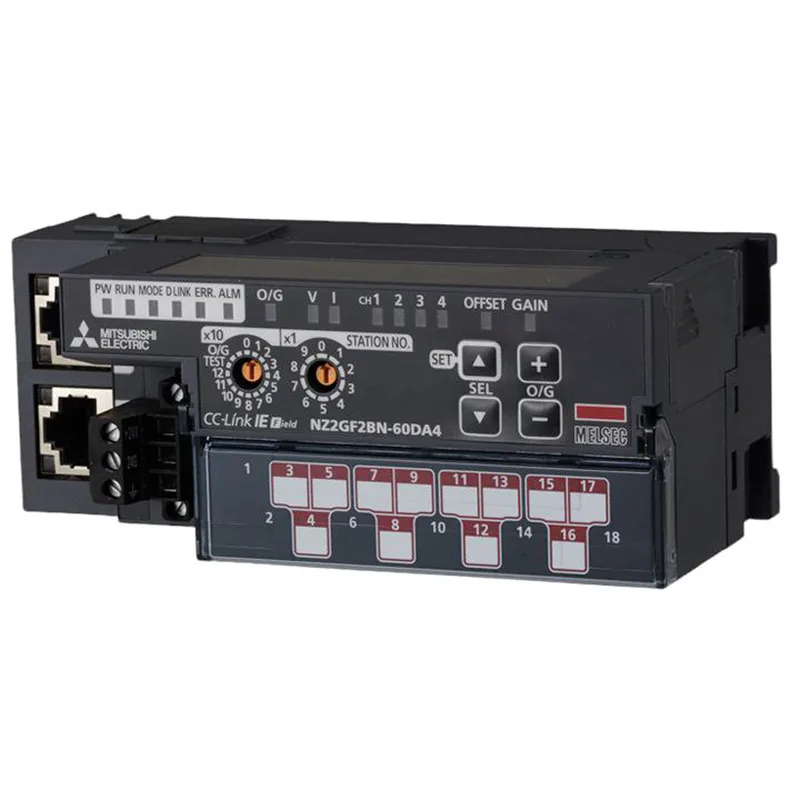

Mitsubishi NZ2GF2BN-60DA4 D/A Converter Module, 4-Channel

MPNNZ2GF2BN-60DA4

Mitsubishi MELSEC NZ2GF2BN-60DA4, CC-Link IE Field remote device station, 4-channel D/A converter module, analog output ±10 VDC / 0–20 mADC, 16-bit digital input, 18-point M3 screw terminal block.

$574.00Ref. price · indicative, final on quote
Mitsubishi Electric NZ2GF2BN-60DA4 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

NZ2GF2BN-60DA4 — Specifications
ParameterValue
Weight0.29 Kg
I (O part)18-point two-piece terminal block (M3 screw), Tightening torque range for terminal screw (M3 screw ? 5.2): 0.43 to 0.57Nm
Product typeMain D/A Converter Module
Station typeRemote device station
Analog outputVoltage(10 to 10VDC (external load resistance value: 1k ohm to 1M ohm), Current(0 to 20mADC (external load resistance value: 0 ohm to 600 ohm)
Digital input16-bit signed binary (-16384 to 16383, -288 to 12287, -12288 to 12287)
Withstand voltageBetween all power supply and communication system terminals and all analog output terminals 500VAC for 1 minute
Communication partRJ45 connector
Between output channelsNon-isolation
Module power supply partTerminal block for module power supply and FG, Tightening torque range for terminal screw (M2.5 screw): 0.5 to 0.6Nm
Number of analog output points4 points (4 channels)/module
Output short circuit protectionProtected
Between power supply system terminal and all analog output terminalsTransformer isolation
Between communication system terminal and all analog output terminalsPhotocoupler isolation

Product details

The Mitsubishi NZ2GF2BN-60DA4 is a main D/A converter module operating as a remote device station on a CC-Link IE Field network. It delivers four analog output channels, each configurable for voltage (±10 VDC, load 1 kΩ–1 MΩ) or current (0–20 mADC, load 0–600 Ω), with 16-bit signed binary digital input word (-16384 to 16383, plus extended ranges -288 to 12287 and -12288 to 12287).

Ratings that govern the connection

Voltage output ±10 VDC requires load resistance 1 kΩ to 1 MΩ. Current output 0–20 mADC requires load resistance 0 Ω to 600 Ω. Digital input is 16-bit signed binary. Between output channels there is no isolation (non-isolated), so if you are driving two different earth-referenced loads, verify there is no ground loop path. Isolation exists between power supply/communication and the outputs (transformer and photocoupler, 500 VAC for 1 minute withstand), so the module handles network side to field side isolation well.

Frequently asked questions

What analog output types does this module support?

It supports voltage output ±10 VDC (load 1 kΩ–1 MΩ) and current output 0–20 mADC (load 0–600 Ω), with 16-bit signed binary digital input.

What are the terminal screw torque requirements?

The I/O terminal block uses M3 screws with a tightening torque range of 0.43 to 0.57 Nm. The module power supply terminal uses M2.5 screws with 0.5 to 0.6 Nm.

How many analog output channels does the NZ2GF2BN-60DA4 have?

It has 4 points (4 channels) per module.
