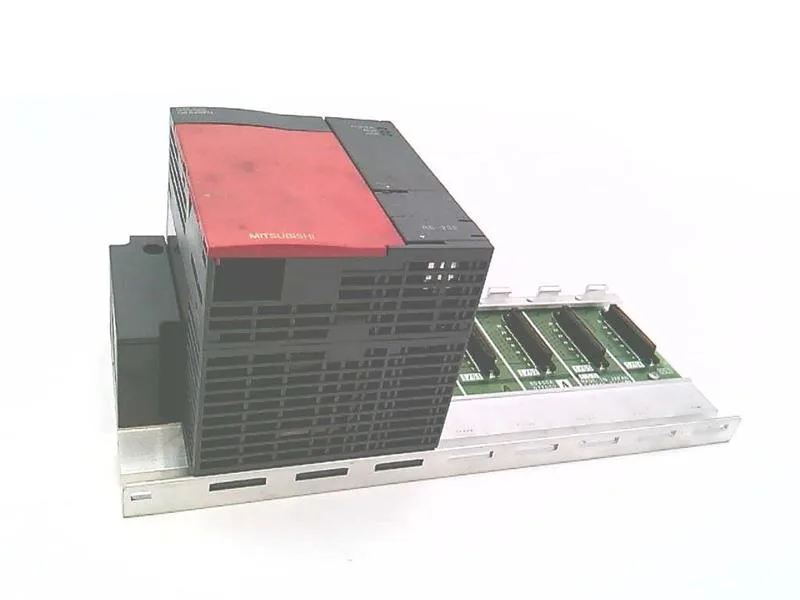

Mitsubishi MELSEC‑Q Q00JCPU CPU module, 8K‑step program capacity, built-in user‑replaceable fuse.
Mitsubishi Q00JCPU MELSEC‑Q CPU, 8K Steps
MPNQ00JCPU
Mitsubishi MELSEC‑Q Q00JCPU CPU module, 8K‑step program capacity, built-in user‑replaceable fuse.
$371.00 – $1,033.42Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Withstand voltage | Input . LG collective and output . FG all at once AC 2300 V / 1 min (altitude 0 to 2000 m) |
| Input supply voltage | AC 100 to 240 V (-15% to + 10%) |
| Over voltage category | II or less |
| Input voltage distortion ratio | Within 5% |
| Inrush current | 40 A within 8 ms |
| Rated output current DC 5V | 3A |
| DC 5 v internal current consumption | 0.26 A |
| Input maximum apparent power | 105VA |
| Latch (power outage hold) range | L 0 to 2047 (default 2048 points) [latch range can be set for B, F, V, T, ST, C, D, W] |
| Allowable momentary power failure time | Within 20 ms (AC 100 V or more) |
| Input frequency | 50/60 Hz ± 5% |
| Installation location | In the control panel |
All specifications+65 ▾
| Parameter | Value |
|---|---|
| Applicable unit | MELSEC-Q series unit |
| External wiring connection method | Screw terminal block (M3.5 screw) |
| Storage ambient temperature | -25 to 75 ° C |
| Operating ambient temperature | 0 to 55 ° C |
| Pollution degree | 2 or less |
| Storage ambient humidity | 5 to 95% RH, non condensing |
| Ambient operating humidity | 5 to 95% RH, non condensing |
| When there is continuous vibration | Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2 |
| Depth | 98 mm |
| Width | 244.4 mm |
| Shipping weight | 1.7 Kg |
| External dimensions height | 98 mm |
| Standard ROM | 6 |
| Standard ROM (Drive 4) | 58 KB |
| Fuse | Built-in (user replaceable) |
| Mass | 0.66 Kg |
| Refresh | 256 pieces |
| Timer [T] | Default 512 points (T0 to 511) (Shared with low-speed timer / high-speed timer) (Changeable) Low-speed timer / high- speed timer specified by instruction Low-speed timer / high-speed timer measurement unit is set by parameter (low-speed timer: 1 to 1000 ms, 1 ms increment, default 100 ms) (High-speed timer: 0.1 to 100.0 ms, 0.1 ms increments, default 10.0 ms) |
| Efficiency | 65% or more |
| Counter [C] | Normal counter: default 512 points (C 0 to 511) (changeable) Interrupt counter: maximum 128 points (default 0 point, set by parameter) |
| MOV d 0 d 1 | 700 ns |
| Pointer [P] | 300 points (P 0 ~ 299) (Device number is fixed) |
| Device class | Class I |
| Constant scan | 1 ~ 2000 ms (Can be set in 1 ms increments) |
| Use elevation | 0 to 2000 m |
| Clock function | Year, month, day, hour, minute, second, day of the week (leap year automatic discrimination) accuracy: -3.20 ~ + 5.27s (. TYP + 1.98s) / d at 0 °C accuracy: -2.57 ~ + 5.27s (TYP + . 2.22 s) / d at 25 ° C. Accuracy: -11.68 to +3.65 s (TYP. -2.64 s) / d at 55 ° C. |
| Control method | Stored program iteration operation |
| Edge relay [V] | Default 1024 points (V 0 to 1023) (changeable) |
| Link relay [B] | Default 2048 points (B 0 - 7 FF) (changeable) |
| Step relay [S] | 2048 points (S 0 ~ 127 / block) (Device number is fixed) |
| Use atmosphere | No corrosive gas |
| Annunciator [F] | Default 1024 points (F0 to 1023) (changeable) |
| Latch relay [L] | Default 2048 points (L0 to 2047) (changeable) |
| Program capacity | 8K steps (32K bytes) |
| Data register [D] | Default 11136 points (D0 to 11135) (changeable) |
| Impact resistance | Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions) |
| Link register [W] | Default 2048 points (W 0 to 7 FF) (changeable) |
| Index register [Z] | 10 points (Z 0 ~ 9) (Device number is fixed) |
| Link direct device | J□□ \ X□□, J□□ \ Y□□, J□□ \ SB□□, J□□ \ SB□□, J□□ \ SB□□, J□□ \ SW□□, J□□ \ SW□ Device specification form for directly accessing the link device of the network unit□ |
| Special relay [SM] | 1024 points (SM 0 ~ 1023) (Device number is fixed) |
| Estimated lead time | Usually ships in 1 - 10 working days.. |
| Function input [FX] | 16 points (FX 0 to F) (Device number is fixed) |
| RUN (PAUSE contact) | One point of each RUN / PAUSE contact can be set from X 0 to 7 FF |
| Function output [FY] | 16 points (FY 0 to F) (the number of device points is fixed) |
| Operation indication | LED display (normal: green lighting, abnormal: off, CPU part "POWER" LED) |
| Insulation resistance | Input . LG collective and output . Between FG batch, input batch and LG, batch output and FG: 500 MV DC insulation resistance meter 10 MΩ or more |
| Interrupt pointer [I] | 128 points (I 0 to 127) ( Number of device points is fixed) Periodic interval of system interrupt pointer I 28 to 31 can be set by parameter. (2 to 1000 ms, 1 ms increments) Default I 28: 100 ms, I 29: 40 ms, I 30: 20 ms, I 31 : 10 ms |
| Special register [SD] | 1024 points (SD 0 ~ 1023) (Device number is fixed) |
| Function register [FD] | 5 points (FD 0 ~ 4) (Device number is fixed) |
| Integration timer [ST] | Default 0 point (Shared with low speed integration timer / high speed integration timer) (Changeable) Low speed integration timer / high speed integration timer specified by instruction Set the measurement unit of low speed integration timer / high speed integration timer by parameter (low speed integration timer: 1000 ms, 1 ms increment, default 100 ms) (High-speed integration timer: 0.1 to 100.0 ms, 0.1 ms increments, default 10.0 ms) |
| Link special relay [SB] | 1024 points (SB 0 to 3 FF) (Device number is fixed) |
| Link special register [SW] | 1024 points (SW 0 to 3 FF) (the number of device points is fixed) |
| Overcurrent protection DC 5V | 3.3 A or more |
| Overvoltage protection DC 5V | 5.5 to 6.5 V |
| Input (output control method) | Refresh method (Direct access input / output possible by specifying direct access input / output (DX, DY)) |
| Number of input (output units) | Five |
| Number of input (output points) | 256 points (X / Y 0 to FF) |
| Number of input (output devices) | 2048 points (X / Y 0 to 7 FF) |
| Intelligent functional unit device | Device specification that directly accesses buffer memory of intelligent function module Format: U□□ \ G□□ |
| Memory capacity program memory (drive 0) | 58 KB |
| Number of device points internal relay [M] | Default 8192 points (M0 to 8191) (changeable) |
| Maximum number of stored files program memory | 6 |
| Processing speed sequence instructions LD x 0 | 200 ns |
| Programming language sequence control language | Relay symbol word, logic symbolic word, MELSAP 3 (SFC), MELSAP-L, function block, structured text (ST) |
| Intelligent functional unit parameter maximum setting number initial setting | 512 pieces |
