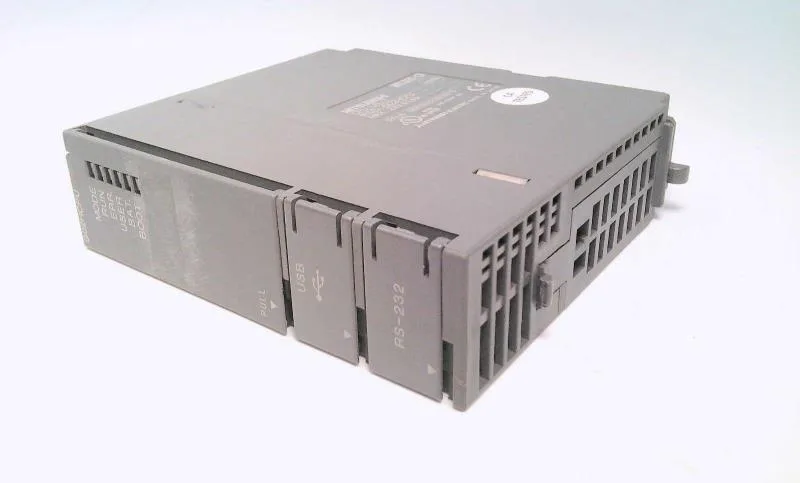

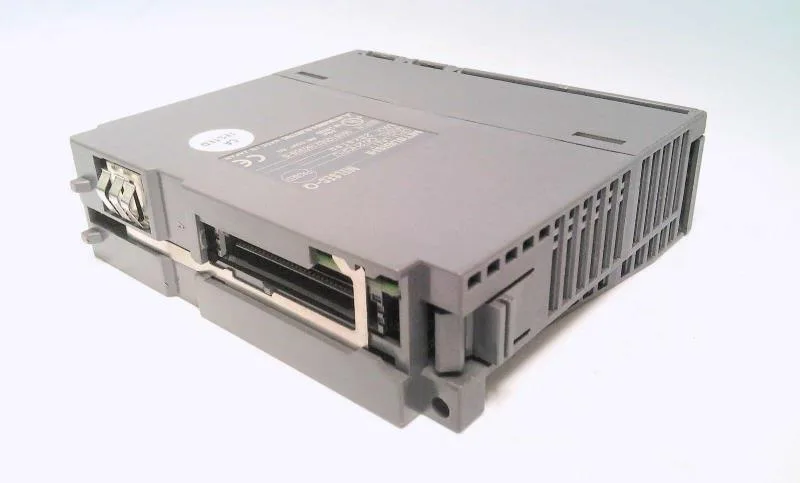

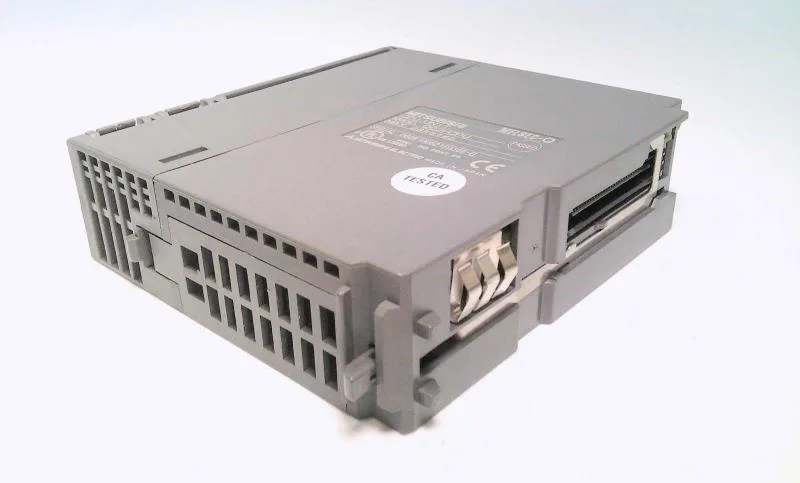

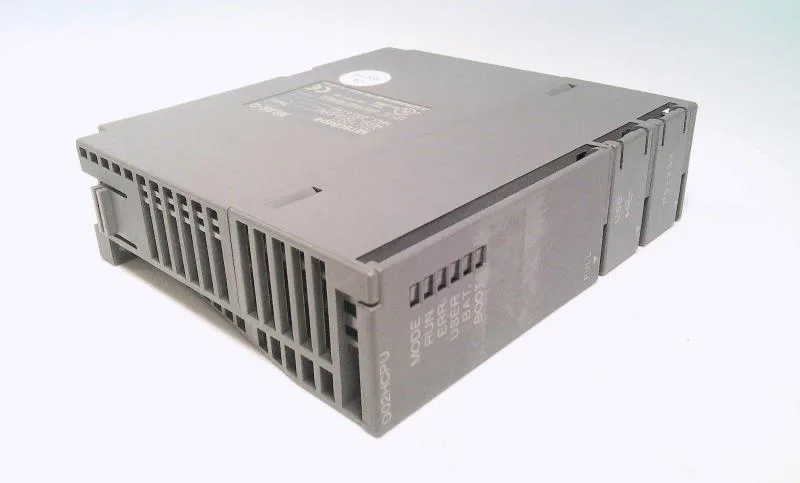

Mitsubishi Electric Q02HCPU

Mitsubishi Q02HCPU High-Performance PLC CPU, 28k Steps

MPN Q02HCPU

Mitsubishi Q Series, high-performance CPU module, 28 k steps, 79 ns/logical instruction, 4096 / 8192 I/O points, 0.2 kg.

$276.00 – $444.50 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

Q02HCPU specifications
ParameterValue
Memory typeRAM, ROM, FLASH
Product typeHigh-performance CPU
Weight0.2 Kg
I (O channels)4096/8192

Product details

What this CPU brings to your control rack

The Mitsubishi Q02HCPU is a high-performance CPU for the Q-series modular PLC platform. It executes logic at 79 ns per instruction, giving you deterministic scan control for mid-to-large applications. Program capacity runs to 28 k steps, and the I/O image supports up to 4096 points (8192 with remote I/O expansion).

With 28 k steps of program space, you have room for a couple of hundred rungs of ladder plus structured text without filling the memory. The 79 ns/instruction cycle time keeps scans tight even when you add PID loops or comms handling. I/O capacity of 4096 points (local or 8192 with remote) means one CPU can run a whole machine cell or a building's HVAC zone without needing a second rack. The module draws its power from the Q-series backplane and stores program and data in RAM backed by a battery, with ROM/Flash for boot and firmware. That means you can keep a redundant copy of the project on the SD card slot (if equipped) and swap CPUs without re-downloading.

MPN
Q02HCPU
