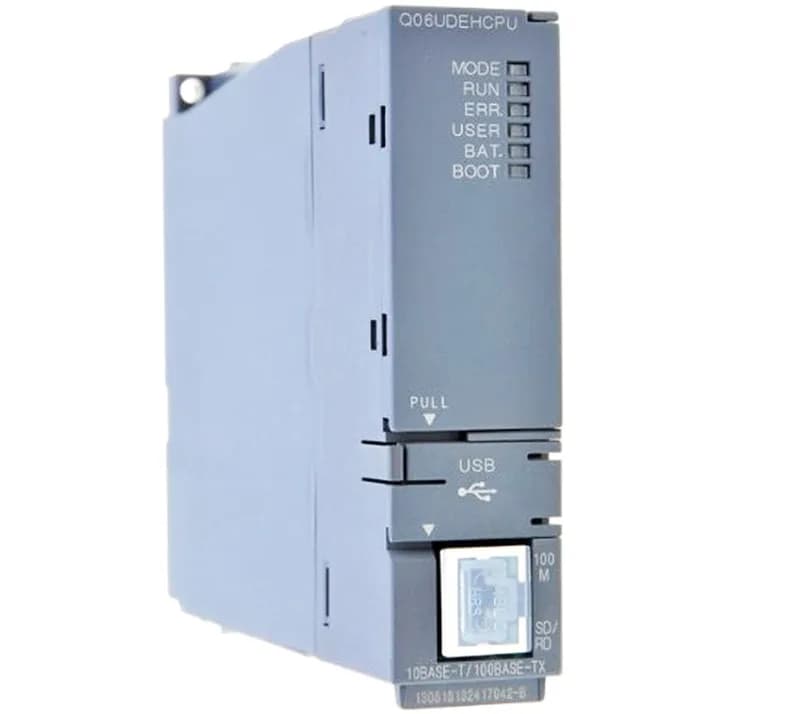

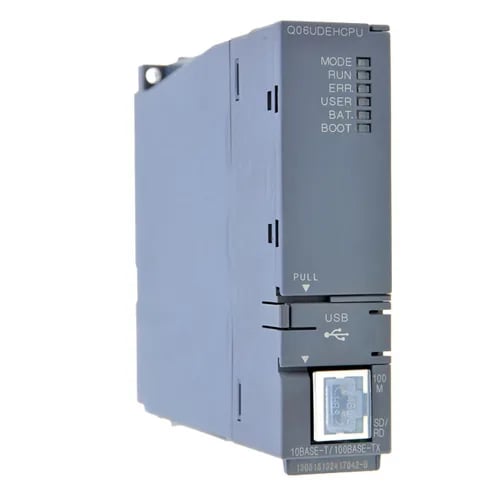

The Mitsubishi Q06UDEHCPU is a Q Series sequence CPU module built for medium-to-large control systems. It handles 4096 I/O points, expandable to 8192 for remote racks. Program capacity sits at 60k steps, with a 9.5 ns per logic instruction execution speed. Onboard communication includes Ethernet, RS-232, and a Mini-B USB port for programming and diagnostics. The battery buffer uses a lithium cell with a 5-year life expectancy, typical for this class. The CPU self-diagnostics cover watchdog, program check, and battery/power supply error detection, which simplifies fault isolation.
Mitsubishi Q06UDEHCPU Q Series CPU, 4096 I/O
MPNQ06UDEHCPU
Mitsubishi Q06UDEHCPU, Q Series Sequence CPU Module, 4096 I/O points, 60k program steps, Ethernet/RS-232/USB, mature lifecycle.
$1,519.00 – $3,003.89Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Memory type | RAN, ROM, FLASH |
| Product type | Q Series Sequence CPU Module |
| Communication ports | USB (Mini-B), RS-232 / Ethernet |
| Shipping weight | 1.5 Kg |
| Dimensions (LxWxH) | 8.93cm x 2.74cm x 9.8cm |
| I (O points) | 4096/8192 |
| Battery buffer | All CPU modules are fitted with a lithium-battery with a life expectancy of 5 years. |
| Program capacity | 60k steps |
| Estimated lead time | Usually ships in 1-10 working days. |
| Program cycle period | 9.5 ns/log. instruction |
| CPU self-diagnostic functions | CPU error detection, Watch Dog, battery error detection, program check, power supply error detection, fuse error detection |
Product details
MPN
Q06UDEHCPU
