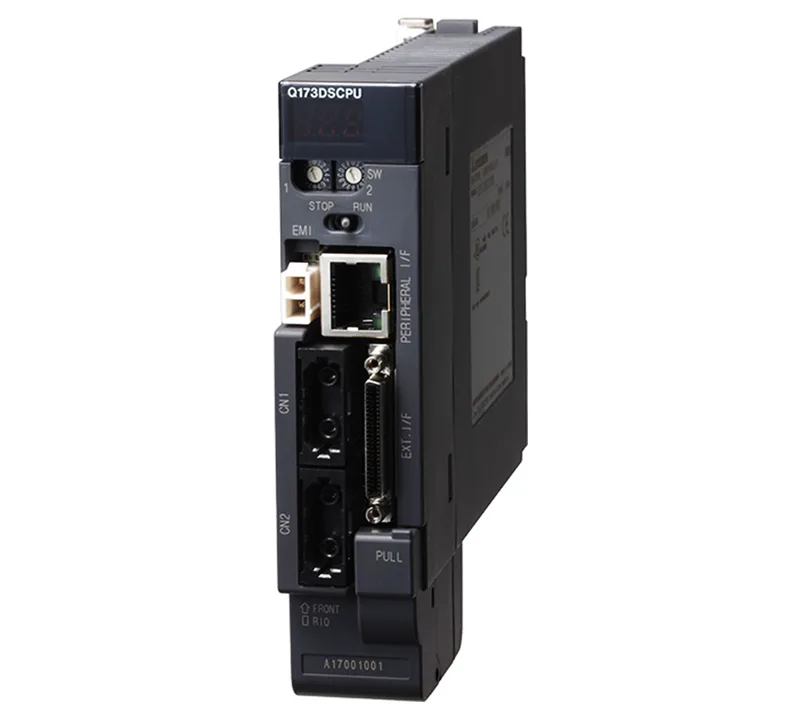

Mitsubishi Q173DSCPU, Motion Controller, 32 axes, 1.75 A at 5 VDC, backlash/electronic gear/phase compensation.
| Parameter | Value |
|---|---|
| Weight | 0.33 Kg |
| Parameter | Value |
|---|---|
| Compensation | Backlash compensation, Electronic gear, Phase compensation (SV22) |
| Product type | Motion Controller |
| Dimensions (LxWxH) | 12.03 cm x 2.74 cm x 12.05 cm |
| JOG operation function | Provided |
| Number of control axes | Up to 32 axes |
| Current consumption 5VDC[A] | 1.75 |
The Q173DSCPU: JOG operation is provided, easing manual axis positioning during setup or maintenance.
Backlash compensation, electronic gear, and phase compensation are built-in firmware functions, reducing the need for external interpolation or CAM programming.
It can control up to 32 axes of synchronized servo motion.
