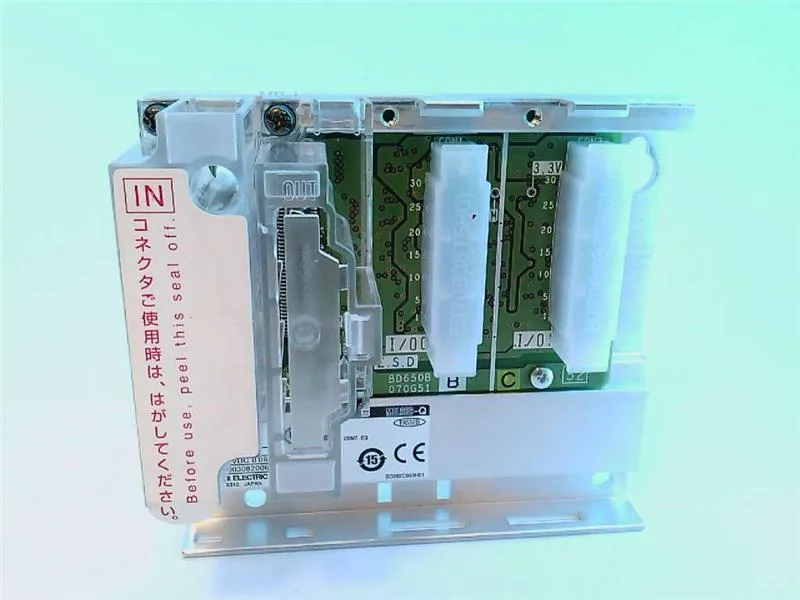

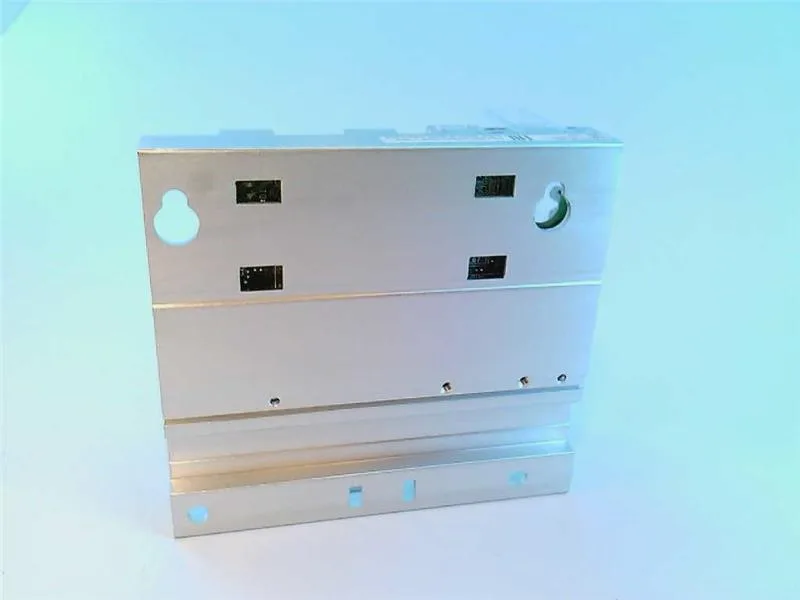

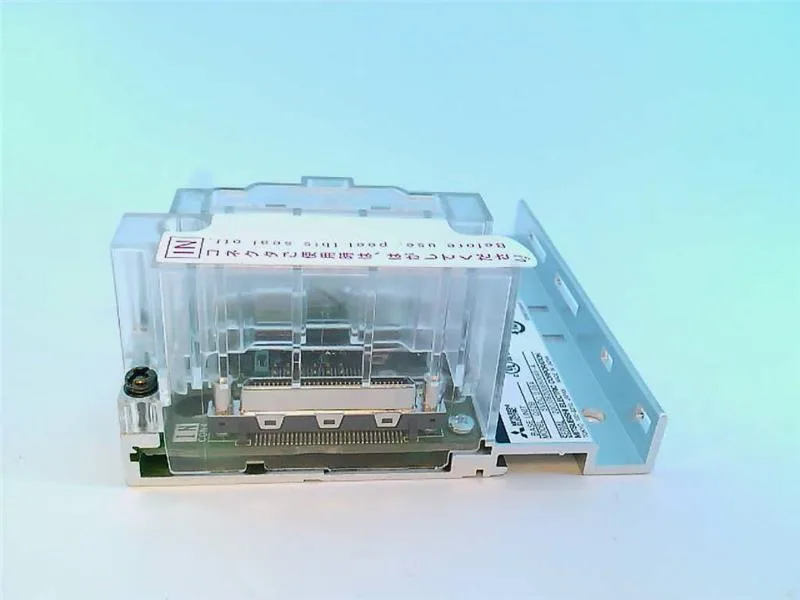

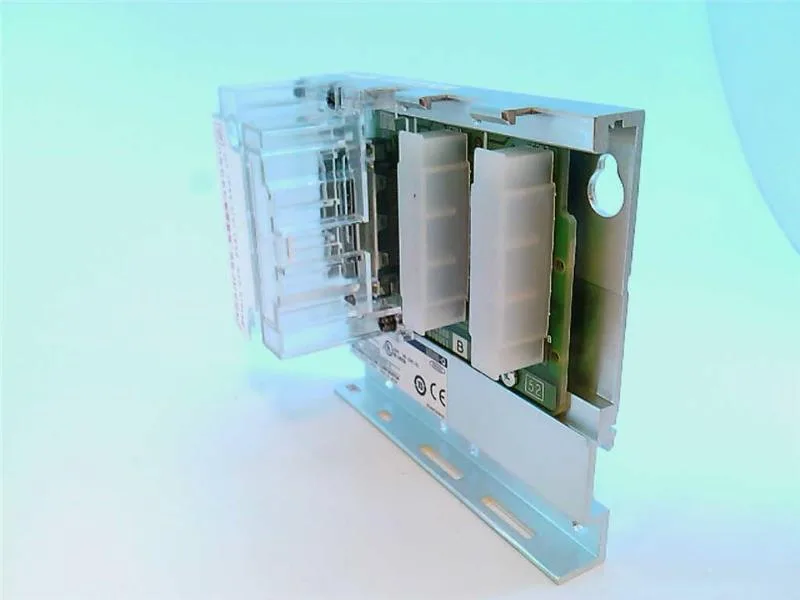

Mitsubishi Electric Q52B — PLCs (Programmable Logic Controllers)

Mitsubishi Q52B Extension Base Unit, 2 I/O Slots, Mature Lif

MPNQ52B

Mitsubishi MELSEC Q Series Extension Base Unit, Product No. Q52B, accepts 2 I/O modules, 5VDC current consumption 0.080A, mature lifecycle.

$63.00Ref. price · indicative, final on quote
Mitsubishi Electric Q52B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

Q52B — Specifications
ParameterValue
Product typeExtension Base Unit
Applicable moduleQ series modules (power supply modules not required)
Mounting hole sizeM4 screw hole or f4.5 hole (for M4 screw)
Possibility of extensionExtendable
Attachment mounting screwM4 × 14 4 pieces (DIN rail mounting adapter to be sold separately)
DIN rail mounting adapter typeQ6DIN3
Number of i (O modules installed)2
5VDC internal current consumption0.080A

Product details

What the Q52B Extension Base Unit Does in a Q Series Rack

The Mitsubishi Q52B is an extension base unit for the MELSEC Q Series PLC platform. It accepts up to two I/O modules and adds them to the backplane without requiring a dedicated power supply module — the 5VDC bus is fed from the main base unit, drawing 0.080A from that supply. That low draw leaves headroom for additional modules on the same power budget.

Mounts with M4 screws through M4 or f4.5 holes (four M4×14 screws included). If you prefer DIN rail, the Q6DIN3 adapter (sold separately) converts it. The base unit is extendable, so you can chain multiple units along the rail for larger I/O counts. Keep the DIN rail adapter on the BOM if the panel spec calls for rail mounting — the screws alone won't hold it on a rail.

Frequently asked questions

How many I/O modules does the Q52B accept?

The Q52B accepts two I/O modules, installed side by side on the base unit.

What is the 5VDC current consumption of the Q52B?

The Q52B draws 0.080A from the 5VDC bus supplied by the main base unit.

Where can I buy the Q52B?

The Q52B is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
