Mitsubishi Electric Q61P-A2

Mitsubishi Q61P-A2 Power Supply Module, 200-240 VAC, 6 A @ 5

MPN Q61P-A2

Mitsubishi MELSEC-Q series power supply module, Q61P-A2, 200-240 VAC input, 6 A rated output at 5 VDC, inrush 20 A within 8 ms.

$112.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

Q61P-A2 specifications
ParameterValue
Product typePower Supply Module
Weight0.31 Kg

Product details

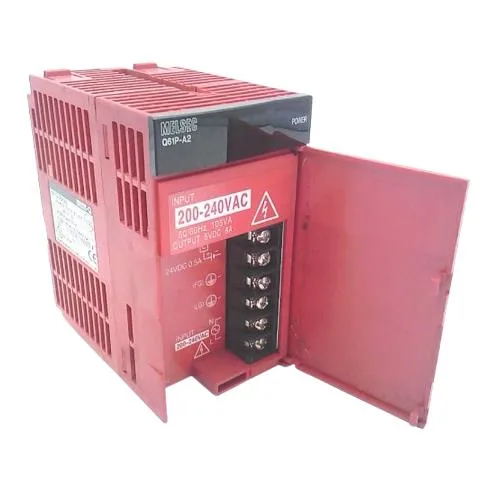

The Mitsubishi Q61P-A2 is a power supply module for the MELSEC-Q series PLC rack, converting 200-240 V AC input to a 5 V DC bus at 6 A rated output. Inrush current hits 20 A within 8 ms on power-up, so factor that into your upstream breaker coordination — a C-curve MCU or a slow-blow fuse handles it cleanly. Input frequency tolerance is 50/60 Hz ±5%, covering both mains standards without derating.

Mounts directly into the MELSEC-Q base unit slot. Terminal screw size is M3.5×7 — use a torque driver at 0.8 N·m to avoid stripping the threads on the cage clamp. The overvoltage protection trips between 5.5 and 6.5 V on the 5 V rail, so if you see a bus fault code on the CPU, check the module's output before swapping the CPU. Maximum input apparent power is 105 VA; the 6 A at 5 V DC gives you 30 W of usable bus power, leaving headroom for a fully loaded rack of I/O and special-function modules.

MPN
Q61P-A2
