Mitsubishi Electric Q64DA — PLCs (Programmable Logic Controllers)

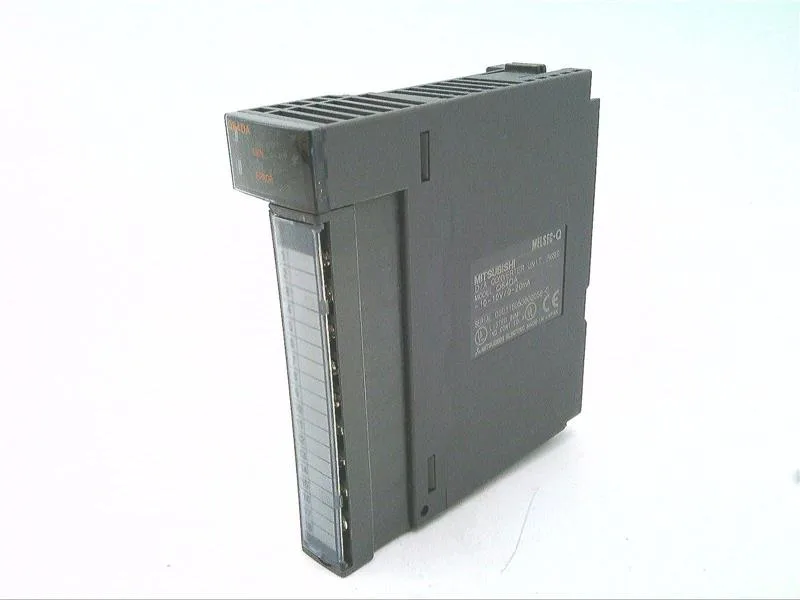

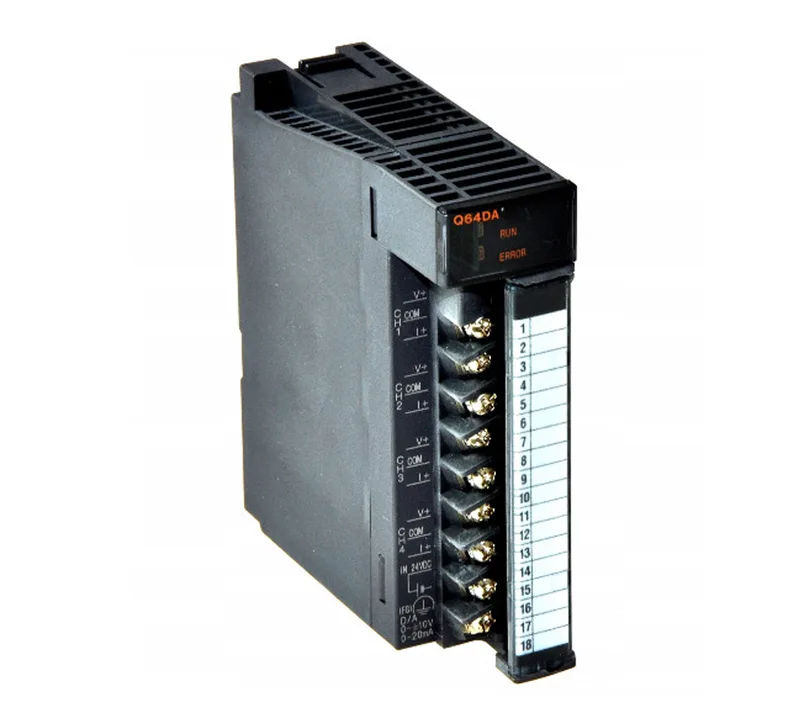

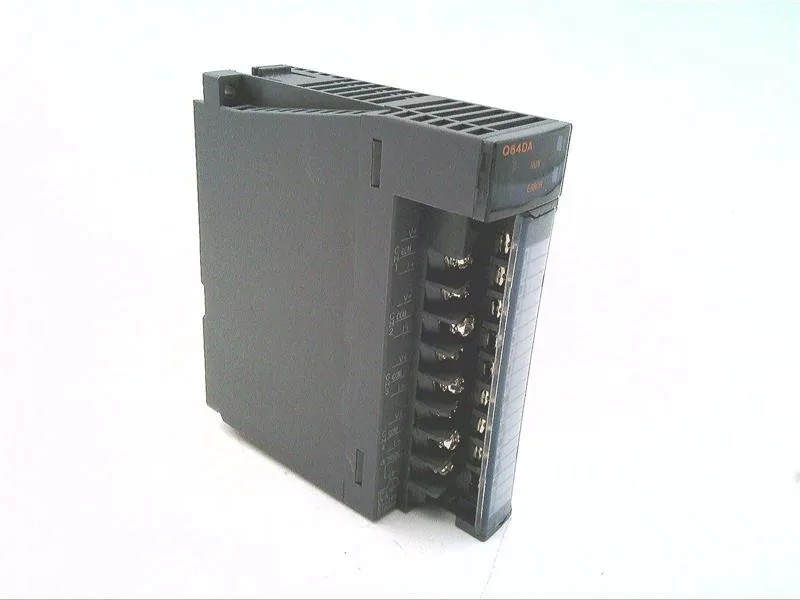

Mitsubishi Electric Q64DA D/A Converter Module, ±10V/0‑20mA

MPNQ64DA

Mitsubishi Electric, MELSEC-Q Series, Digital-Analog Converter Module, Q64DA, ±10 V / 0‑20 mA analog output, 80 µs/ch conversion speed.

$296.00Ref. price · indicative, final on quote
Mitsubishi Electric Q64DA datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

Q64DA — Mechanical
ParameterValue
Weight0.19 Kg
Q64DA — Other specifications
ParameterValue
Product typeDigital-Analog Converter Module
Digital input16-bit signed binary (normal resolution mode: –4096 to 4095, high resolution mode:–12288 to 12287, –16384 to 16383)
Conversion speed80 µ s/ channel
Applicable wire size0.3 to 0.75 mm2
Connecting terminals18 points terminal block
Analog output voltage10 to 10V DC (External load resistance 1 k ? to 1 M ?)
Analog output current0 to 20 mA DC (External load resistance 0 ? to 600 ?)
Number of occupied points16 points
Internal current consumption (5 v DC)0.34 A

Product details

The Mitsubishi Electric Q64DA is a Digital-Analog Converter Module for the MELSEC-Q PLC series, converting 16-bit signed binary digital input to a ±10 V DC or 0‑20 mA DC analog output at 80 µs per channel. Wiring connects via an 18‑point terminal block accepting 0.3 to 0.75 mm² wire.

Integration Notes

Analog output ranges are software-selectable: ±10 V DC into a minimum 1 kΩ load, or 0–20 mA DC into up to 600 Ω. Conversion speed of 80 µs per channel supports fast loop updates. Resolution options include normal mode (−4096 to 4095) and high‑resolution mode (−12288 to 12287 or −16384 to 16383). The module occupies 16 points and is addressed like standard I/O on the Q bus — no special configuration overhead.

Frequently asked questions

What are the analog output ranges and resolution?

The Q64DA outputs ±10 V DC or 0–20 mA DC with selectable resolution up to 16‑bit signed binary (high‑resolution mode: –16384 to 16383). Conversion takes 80 µs per channel.

MPN
Q64DA
