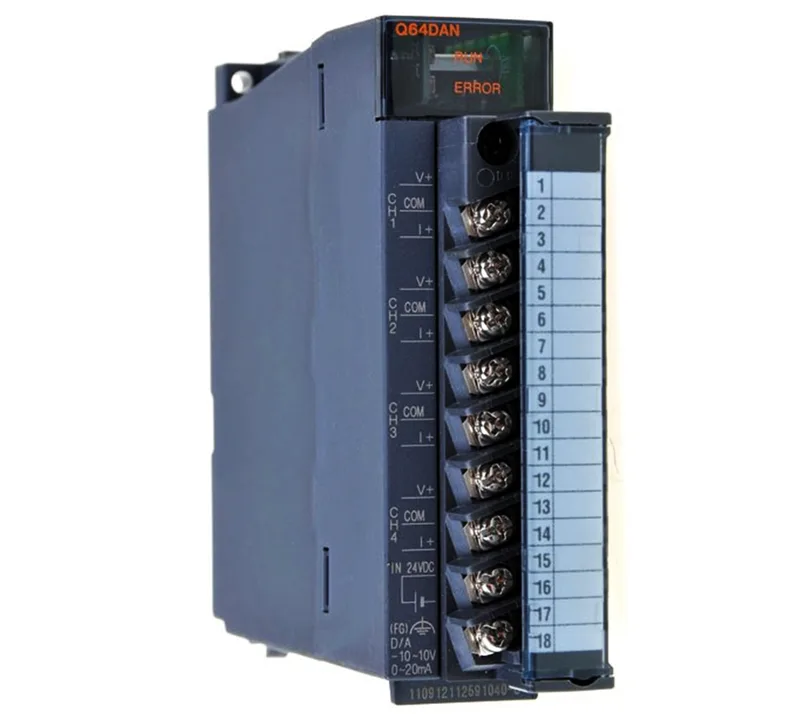

Mitsubishi Electric Q64DAN Digital-Analog Converter Module, 4 analog output points, ±12V / 0-20mA output, 16-bit signed binary resolution, 0.2 kg.
| Parameter | Value |
|---|---|
| Weight | 0.2 kg |
| Parameter | Value |
|---|---|
| Current | 21mA |
| Voltage | ±12V |
| Product type | Digital-Analog Converter Module |
| Digital input | 16-bit signed binary |
| Analog outputVoltage | -10VDC to 10V (external load resistance 1k? to 1M?)Current : DC0mA to 20mA (external load resistance 0? to 600?) |
| Absolute max. outputVoltage | ±12VCurrent : 21mA |
| Number of analog output points | 4 points (4 channels) |
| Internal current consumption (5VDC) | 0.34A |
The Q64DAN is a 4-channel digital-to-analog converter module for the Mitsubishi Electric MELSEC-Q series PLC backplane. It converts 16-bit signed binary values from the CPU into analog voltage or current signals on four independent output points. Voltage output spans -10 VDC to +10 VDC into a 1 kΩ to 1 MΩ load; current output covers 0 mA to 20 mA into 0 Ω to 600 Ω. Absolute maximum ratings are ±12 V and 21 mA — exceeding these damages the output stage.
16-bit signed binary — 0 to 32000 or -16000 to 16000 typical for the Q series analog range, giving 0.3125 mV per LSB on the ±10 V scale.
Yes — 0 mA to 20 mA into a load resistance of 0 Ω to 600 Ω. The voltage output is -10 V to +10 V into 1 kΩ to 1 MΩ.
