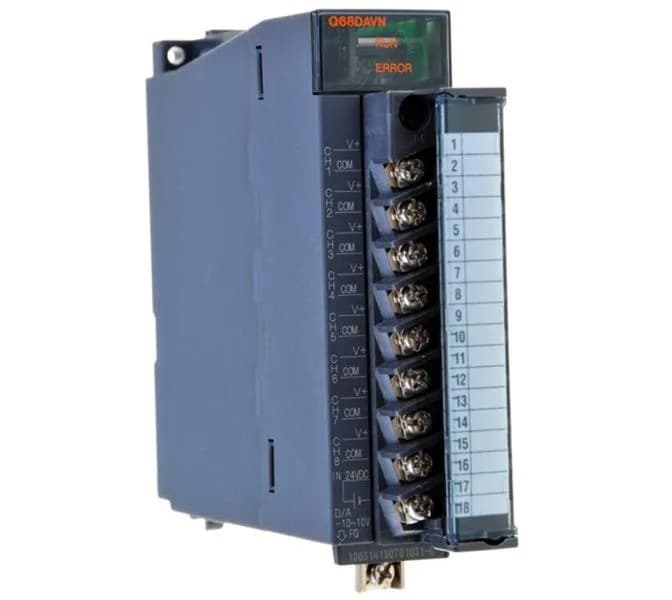

Mitsubishi Electric Q68DAVN

Q68DAVN Digital-Analog Converter Module, 8-Channel 10V Outpu

MPNQ68DAVN

Mitsubishi Q68DAVN Digital-Analog Converter Module, 8 analog output channels, -10 to 10 VDC, 16-bit resolution, 18-point terminal block, 0.38 A 5 VDC internal draw.

$716.00 – $1,168.54Ref. price · indicative, final on quote
Mitsubishi Electric Q68DAVN datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Q68DAVN key specifications
ParameterValue
Product typeDigital-Analog Converter Module
Analog output voltage-10VDC to 10V (external load resistance 1k? to 1M?)
Dielectric withstand voltageBetween I/O terminals and PLC power supply: 500VAC for 1 minute Between analog output and external power supply: 500VAC for 1 minute
Output short-circuit protectionProtected
Internal current consumption (5VDC)0.38A
External power supplyRipple and spike 500mVP-P or less,24VDC +20%,-15%
Connection terminal18-point terminal block
Applicable wire size0.3 to 0.75mm2
Other than FG terminalR1.25-3 (sleeved crimp terminals cannot be used)
Applicable solderless terminalR1.25-3 (sleeved crimp terminals cannot be used)
Weight0.2 Kg
Shipping weight1 Kg

All specifications

Q68DAVN additional specifications
ParameterValue
Digital input16-bit signed binary (In standard resolution mode: -4096 to 4095; In high resolution mode: -12288 to 12287, -16384 to 16383)
Isolation method- I/O terminal isolation from PLC power supply: Photocoupler isolation Output channel isolation: Not isolated Analog output isolation from external power supply: Transformer isolation
Estimated lead time1 - 10 Working Days
Insulation resistanceBetween I/O terminals and PLC power supply: 500VDC, 20M? or more Between analog output and external power supply: 500VDC, 20M? or more
Number E2PROM writingsMax. 100,000 times
Number of occupied i (O points)16 points (I/O assignment: intelligent 16 points)
Number of analog output points8 points (8 channels)

Product details

8-channel analog output for Q-series racks

The Q68DAVN Digital-Analog Converter Module provides 8 analog output channels, each configurable for -10 VDC to 10 VDC signals, and occupies 16 I/O points on the Q-series backplane. In high resolution mode the 16-bit signed binary input accepts -12288 to 12287, enough to drive a full 16-bit DAC span for precision process loops. Output short-circuit protection is included, so a miswired field line won't take down the channel.

Terminal and power wiring

Wire with 0.3 to 0.75 mm² solid or stranded conductors using R1.25-3 ring terminals; sleeved crimp terminals will not fit the 18-point terminal block. Photocoupler isolation separates I/O terminals from the PLC power side, and transformer isolation protects the analog output from the external supply — both rated at 500 VAC dielectric.

MPN
Q68DAVN
