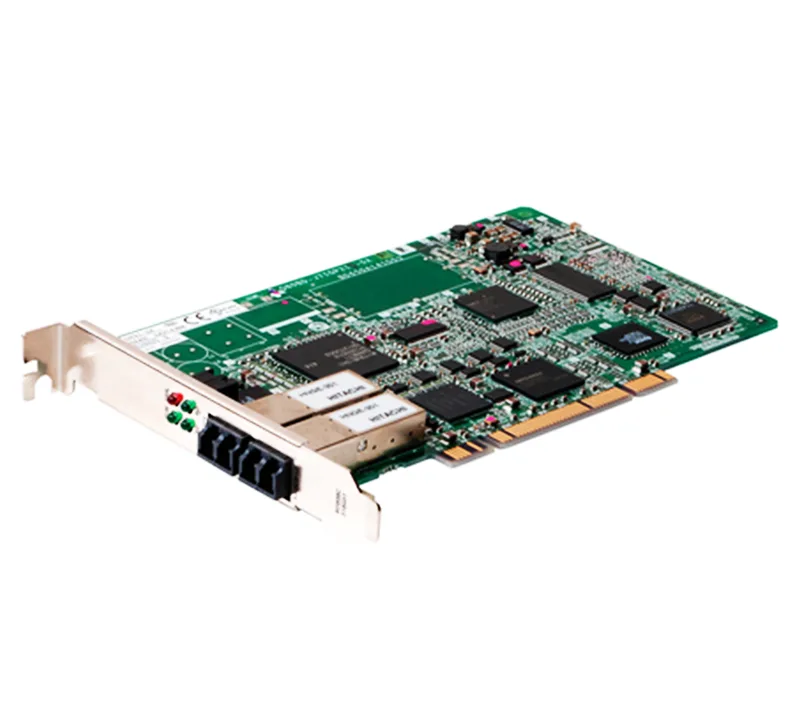

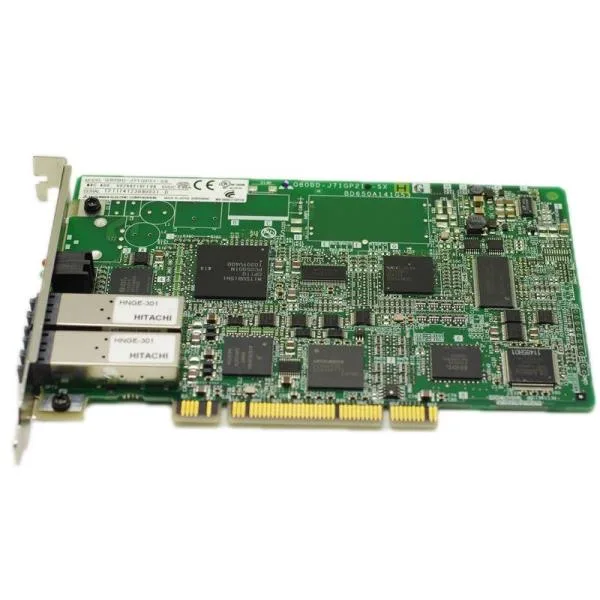

Mitsubishi Q80BD-J71GP21-SX CC-Link IE Module
MPNQ80BD-J71GP21-SX
Mitsubishi CC-Link IE PC Network Dual Loop Fibre Module
$1,977.39 – $2,031.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Over voltage category | II or less |
| DC 5 v internal current consumption | 1.10 A |
| Communication cable | Optical fiber cable that meets 1000 BASE-SX standards: multimode optical fiber (GI) |
| Communication speed | 1 Gbps |
| Communication method | Token ring method |
| Mounting slot | PCI slot or PCI-X slot (half size) |
| Installation location | In the control panel |
| Applicable connector | Double LC type connector |
| Storage ambient temperature | -25 to 75 ° C |
| Operating ambient temperature | 0 to 55 ° C |
| Pollution degree | 2 or less |
| Storage ambient humidity | 5 to 95% RH, non condensing |
All specifications
| Parameter | Value |
|---|---|
| Ambient operating humidity | 5 to 95% RH, non condensing |
| When there is continuous vibration | Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2 |
| Shipping weight | 1.1 Kg |
| Laser class (JIS c 6802, IEC 60825-1) | Class 1 laser products |
| LW | 16 K points (16384 points, 2 K bytes), extended mode: 128 K points (131072 points, 256 K bytes) |
| LX | 8K points (8192 points, 1 Kbyte) |
| LY | 8K points (8192 points, 1 Kbyte) |
| Mass | 0.12 Kg |
| Manufacturer | Mitsubishi Electric |
| Use elevation | 0 to 2000 m |
| Use atmosphere | No corrosive gas |
| Impact resistance | Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions) |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Maximum number of groups | 32 |
| Number of occupied slots | 1 |
| Total extension distance | 66000 m (when 120 units are connected) |
| Transmission path format | Double loop |
| Maximum number of networks | 239 |
| Number of installable sheets | Up to 4 sheets |
| Maximum Inter-Station distance | 550 m |
| Transient transmission capacity | Maximum 1920 bytes |
| Maximum link points per station | 16 K points (16384 points, 2 K bytes), extended mode: 32 K points (32768 points, 4 K bytes) |
| Maximum number of connected stations | 120 units (management station: 1 unit, normal station: 119 units) |
| Maximum number of links per network | 32 K points (32768 points, 4 K bytes) |
MPN
Q80BD-J71GP21-SX
