Mitsubishi Electric Q80BD-J71LP21-25 — PLCs (Programmable Logic Controllers)

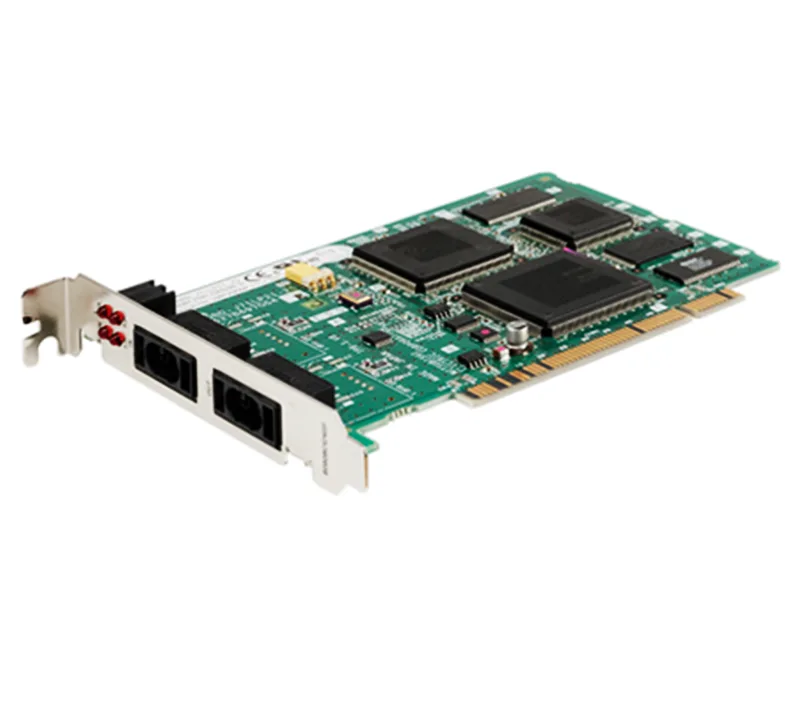

Mitsubishi Q80BD-J71LP21-25 MELSECNET/H Interface Board, 25

MPNQ80BD-J71LP21-25

Mitsubishi MELSECNET/H interface board Q80BD-J71LP21-25, PCI half-size, 25 Mbps token ring, LB/LW 16384 points.

$1,159.92 – $1,357.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

Q80BD-J71LP21-25 key specifications
ParameterValue
Over voltage categoryII or less
DC 5 v internal current consumption0.46 A
Communication cableSI / H-PCF / broadband H-PCF / QSI fiber optic cable
Communication speed25 Mbps / 10 Mbps
Communication methodToken ring method
Mounting slotPCI slot (half size)
Installation locationIn the control panel
Applicable connector2-core optical connector plug F06 / F08 equivalent (conforming to JIS C 5975/5977)
Storage ambient temperature-25 to 75 ° C
Operating ambient temperature0 to 55 ° C
Pollution degree2 or less
Storage ambient humidity5 to 95% RH, non condensing

All specifications

Q80BD-J71LP21-25 additional specifications
ParameterValue
Ambient operating humidity5 to 95% RH, non condensing
When there is continuous vibrationFrequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Shipping weight1 Kg
LB16384 points, 2 K bytes (in MELSECNET / 10 mode: 8192 points, 1 K byte)
LW16384 points, 32 K bytes (in MELSECNET / 10 mode: 8192 points, 16 Kbytes)
Mass0.10 Kg
Coding schemeNRZI code (Non Return to Zero Inverted)
Occupied slot1 slot
Use elevation0 to 2000 m
Use atmosphereNo corrosive gas
Impact resistanceMeets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Estimated lead timeUsually ships in 1 - 10 working days.
Transmission formatHDLC compliant (frame format)
Error control methodCRC (X 16 + X 12 + X 5 + 1) and retry due to time over
Synchronization methodFrame synchronization method
Maximum number of groups32 (9 in MELSECNET / 10 mode)
Transmission path formatDouble loop
Maximum number of networks239
Number of installable sheetsUp to 4 sheets
Maximum Inter-Station distanceSI cable: 200 m (25 Mbps), 500 m (10 Mbps) H - PCF cable: 400 m (25 Mbps), 1 km (10 Mbps) Broadband H - PCF cable: 1 km QSI cable: 1 km
1 total extended distance of network30 km
Maximum number of links per network LX (LY)8192 points, 1 Kbyte
Maximum link points per station PC to PC netMELSECNET / H extended mode: {(LY + LB) ÷ 8 + (2 X LW)} ? 35840 bytes MELSECNET / H mode, MELSECNET / 10 mode: {(LY + LB) ÷ 8 + (2 X LW)} ? 2000 bytes
Maximum number of connected stations PC to PC net64 stations (management station: 1, normal station: 63)

Product details

Network interface for MELSECNET/H rings

The Q80BD-J71LP21-25 is a PCI half-size interface board that connects a MELSEC Q-series programmable controller to a MELSECNET/H fiber-optic token-ring network. It communicates at 25 Mbps or 10 Mbps, with a double-loop transmission path for redundancy. Link capacity: LB 16384 points (2 Kbytes) and LW 16384 points (32 Kbytes) in extended mode. Fiber cable choices vary maximum inter-station distance: SI cable reaches 200 m at 25 Mbps, 500 m at 10 Mbps; H-PCF cable reaches 400 m / 1 km; broadband H-PCF and QSI cables go up to 1 km.

The module occupies one PCI slot and draws 0.46 A from the 5 V rail. It is rated for pollution degree 2 or less, overvoltage category II, and operation in non-corrosive atmospheres from 0 to 55 °C.

Frequently asked questions

What are the LB and LW capacities of this board?

In MELSECNET/H extended mode, LB is 16384 points (2 Kbytes) and LW is 16384 points (32 Kbytes). In MELSECNET/10 mode, both are halved to 8192 points.

What communication speed and method does it use?

It supports 25 Mbps and 10 Mbps via a token-passing ring method (HDLC-compliant frames). The transmission path is a double-loop fiber optic configuration for fault tolerance.
