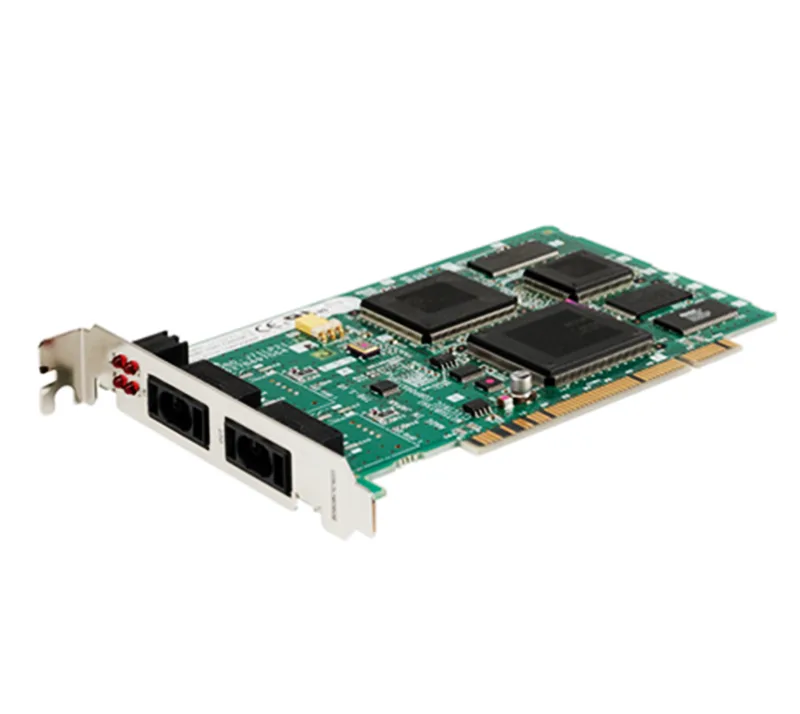

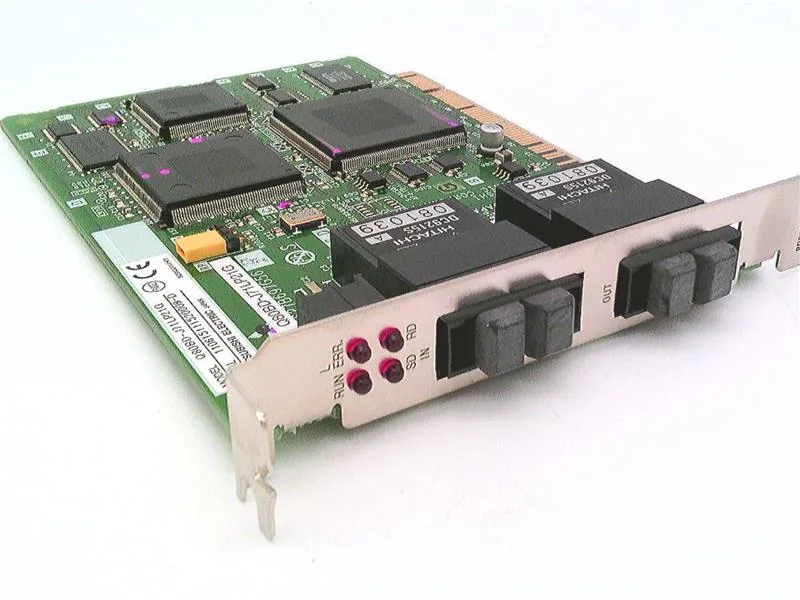

MELSECNET / H interface board Q80BD-J71LP21G
$626.29Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| DC 5 v internal current consumption | 0.45 A |
| Communication cable | GI-50/125 optical fiber cable |
| Communication speed | 10 Mbps |
| Communication method | Token ring method |
| Mounting slot | PCI slot (half size) |
| Applicable connector | 2-core optical connector plug F06 / F08 equivalent (conforming to JIS C 5975/5977) |
| Shipping weight | 1 Kg |
| LB | 16384 points, 2 K bytes (in MELSECNET / 10 mode: 8192 points, 1 K byte) |
| LW | 16384 points, 32 K bytes (in MELSECNET / 10 mode: 8192 points, 16 Kbytes) |
| Mass | 0.11 Kg |
| Manufacturer | Mitsubishi Electric |
| Coding scheme | NRZI code (Non Return to Zero Inverted) |
All specifications
| Parameter | Value |
|---|---|
| Occupied slot | 1 slot |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Transmission format | HDLC compliant (frame format) |
| Error control method | CRC (X 16 + X 12 + X 5 + 1) and retry due to time over |
| Synchronization method | Frame synchronization method |
| Maximum number of groups | 32 (9 in MELSECNET / 10 mode) |
| Transmission path format | Double loop |
| Maximum number of networks | 239 |
| Number of installable sheets | Up to 4 sheets |
| Maximum Inter-Station distance | 2 km |
| 1 total extended distance of network | 30 km |
| Maximum number of links per network LX (LY) | 8192 points, 1 Kbyte |
| Maximum link points per station PC to PC net | MELSECNET / H extended mode: {(LY + LB) ÷ 8 + (2 X LW)} ? 35840 bytes MELSECNET / H mode, MELSECNET / 10 mode: {(LY + LB) ÷ 8 + (2 X LW)} ? 2000 bytes |
| Maximum number of connected stations PC to PC net | 64 stations (management station: 1, normal station: 63) |
