Q81BD-J71GP21-SX - Mitsubishi Electric
MPNQ81BD-J71GP21-SX

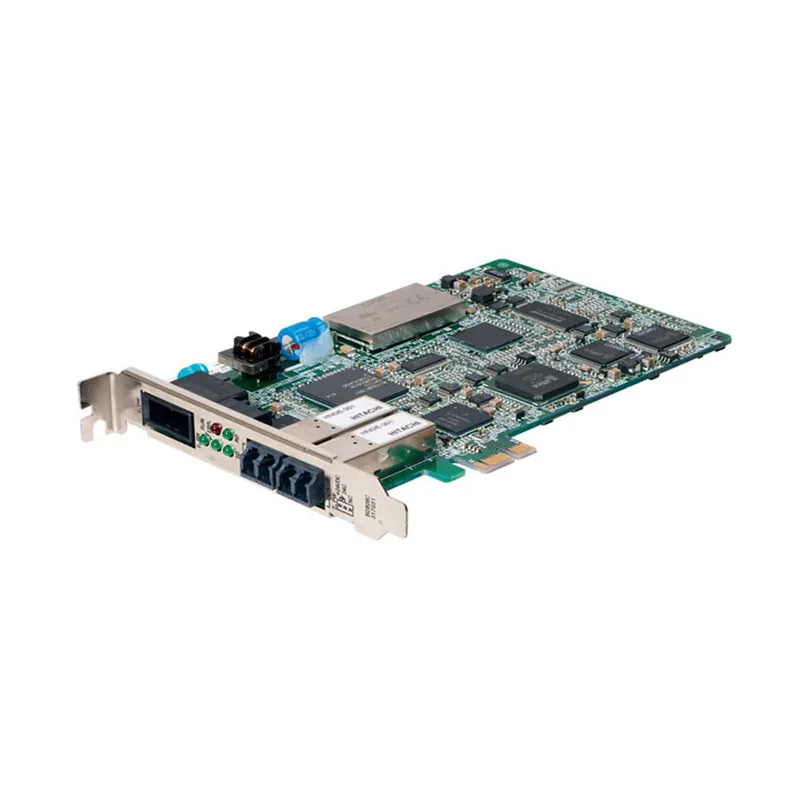

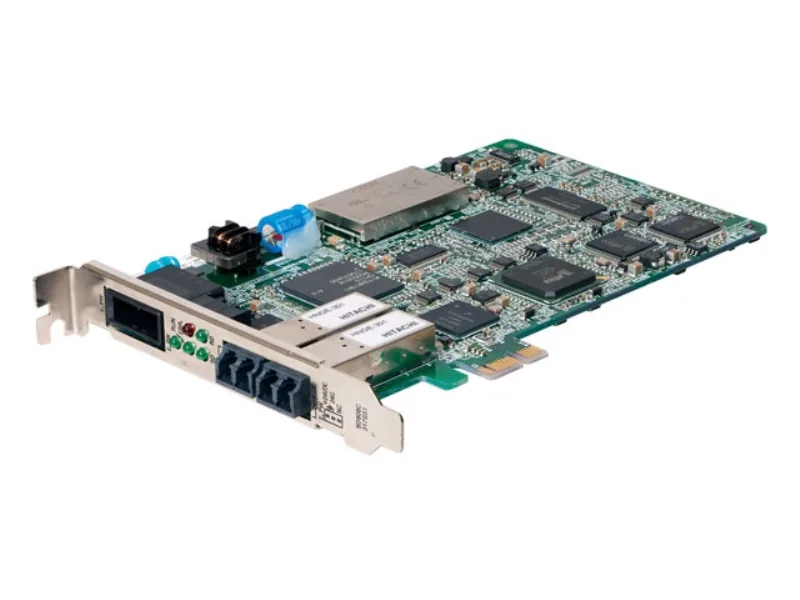

CC-Link IE Control Network PC Interface Board
$1,809.00 – $2,703.78Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.13 Kg |
| Parameter | Value |
|---|---|
| Product type | CC-Link IE Control Network PC Interface Board |
| Station type | Control station or normal station |
| Installation slot | PCI Express® x1, x2, x4, x8, x16 slot (half size) |
| No. of occupied slots | 1 slot |
| Internal current consumption | 2.07A(3.3VDC) |
| Number of boards that can be installed | Up to 4 |
| PCI bus (PCI express® bus specifications) | PCI Express® Standard Rev. 1.1 (3.3 VDC, link width: 1 lane Basic clock: 100 MHz) |
MPN
Q81BD-J71GP21-SX
