Mitsubishi QD62E is a 2-channel high-speed counter unit for the MELSEC-Q series, rated for counting speeds up to 200 kpps with a 32-bit signed binary range from -2,147,483,648 to 2,147,483,647. It supports one-phase, two-phase, and CW/CCW input modes with configurable multiplication (1x, 2x, 4x). The module occupies 16 I/O points and draws 0.33 A from the 5 V backplane.
Mitsubishi QD62E High-Speed Counter, 2 Ch, 200 kpps
MPNQD62E

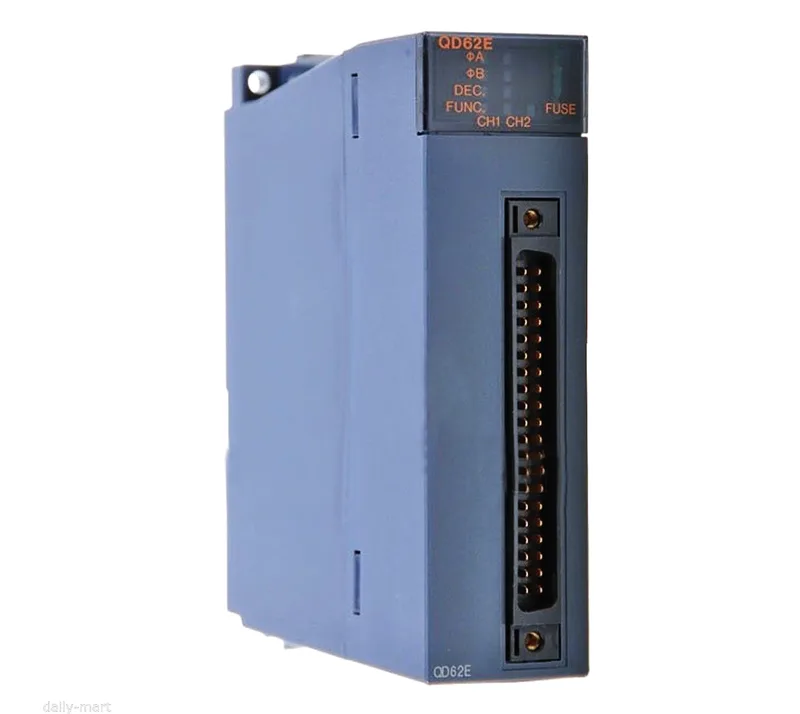

Mitsubishi QD62E high-speed counter unit, 2 channels, 200 kpps, 32-bit signed binary counting range, compact 27.4 mm wide.
$497.00 – $656.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| DC 5 v internal current consumption | 0.33 A |
| Count input signal phase | One phase input (1/2 multiplication), 2 phase input (1/2 multiplication / 4 multiplication), CW / CCW input |
| Minimum count pulse width (duty ratio 50%) | 200k pulse / s: 5µs (ON / OFF each 2.5 [mu] s), 2-phase input at the minimum retardation: 1.25Myuesu 100k pulse / s: 10 [mu] s (ON / OFF each 5 .mu.s), 2-phase input at the minimum phase difference: 2.5 [mu] s 10k pulse / s: 100 µs (ON / OFF 50 µs each), minimum phase difference at 2 phase input: 25 µs |
| Applicable connector | A6CON1, A6CON2, A6CON3, A6CON4 (sold separately) |
| External wiring connection method | 40 pin connector |
| Depth | 90 mm |
| Width | 27.4 mm |
| Shipping weight | 1.1 Kg |
| External dimensions height | 98 mm |
| Mass | 0.11 Kg |
| Model | UP / DOWN preset counter + ring counter function |
| Count range | 32 bit signed binary (-2147483648 to 2147483647) |
All specifications+11 ▾
| Parameter | Value |
|---|---|
| Function start | DC 5/12/24 V 2 to 5 mA |
| Comparison result | Set valuecount value |
| Umber of channels | 2 channels |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| External input preset | DC 5/12/24 V 2 to 5 mA |
| Signal levels (fA, fB) | DC 5/12/24 V 2 to 5 mA |
| External output match output | Transistor (source type) output: 2 points / channel DC 12/24 V 0.1 A / 1 point, 0.4 A / 1 common |
| Counting speed change setting | 200 k (100 k to 200 kpps), 100 k (10 k to 100 kpps), 10 k (10 kpps or less) |
| Number of occupied i (O points) | 16 points (I / O assignment: 16 points of intelligence) |
| Counter counting speed (highest) | 200 k pulse / s, 100 k pulse / s, 10 k pulse / s |
| Match detection comparative range | 32 bit signed binary |
