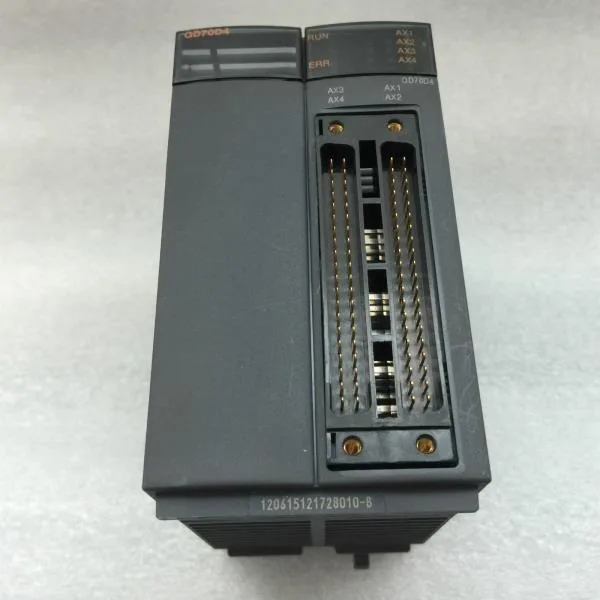

Mitsubishi QD70D4 Positioning Module 4-Axis
MPNQD70D4
Mitsubishi Multi Axis Positioning Module
$1,121.00 – $2,495.47Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| DC 5 v internal current consumption | 1.16 A |
| Applicable connector | A6CON1, A6CON2, A6CON4 (sold separately) |
| External wiring connection method | 40 pin connector X 2 |
| Maximum connection distance between drive units | 10 m |
| Depth | 90 mm |
| Width | 55.2 mm |
| Shipping weight | 1.2 Kg |
| External dimensions height | 98 mm |
| Mass | 0.17 Kg |
| Control unit | pulse |
| Manufacturer | Mitsubishi Electric |
| Control method | PTP (Point To Point) control trajectory control (linear only) Speed ??/ position switching control |
All specifications
| Parameter | Value |
|---|---|
| Speed ??command | 0 to 4000000 pulse / s |
| Increment method | -2147483648 to 2147483647 pulse |
| Positioning data | 10 data / axis |
| Trajectory control | Increment method / absolute method |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Pulse output method | Differential output |
| Maximum output pulse | 4 M pulse / s |
| Number of control axes | 4 axes |
| Simultaneous 4-axis start | 0.2 ms |
| Number of occupied i (O points) | 48 points, 2 slots (I / O assignment: free 16 points + intelli 32 points) |
| Positioning range absolute method | -2147483648 to 2147483647 pulse |
| Acceleration and deceleration time | 0 to 32767 ms |
| Speed ?? (position switching control) | . 0 to 2147483647 pulse |
| Acceleration (deceleration processing) | Trapezoidal acceleration / deceleration, S-shaped acceleration / deceleration |
| Start time position control 1-axis start | 0.1 ms |
| Positioning positioning method PTP control | Increment method / absolute method |
