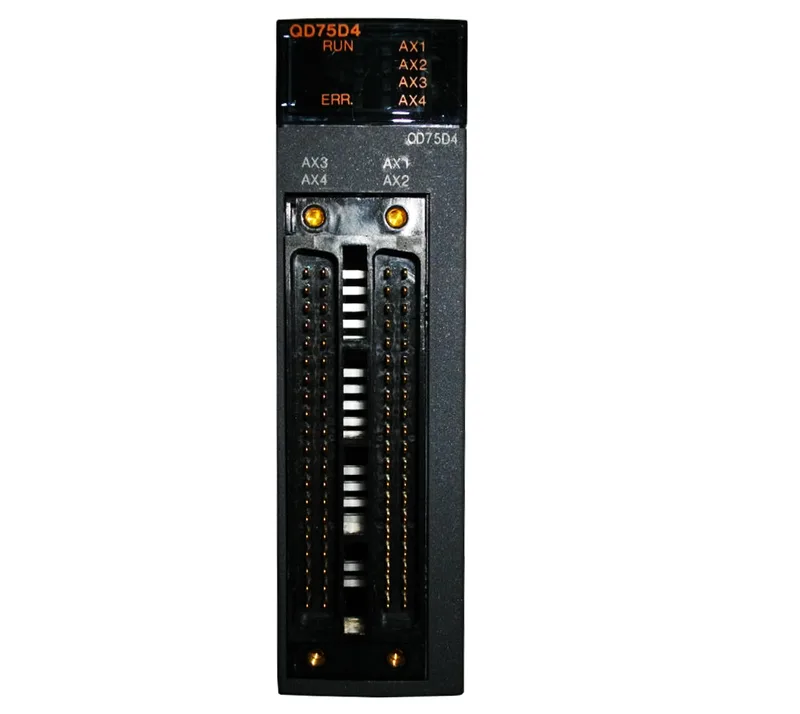

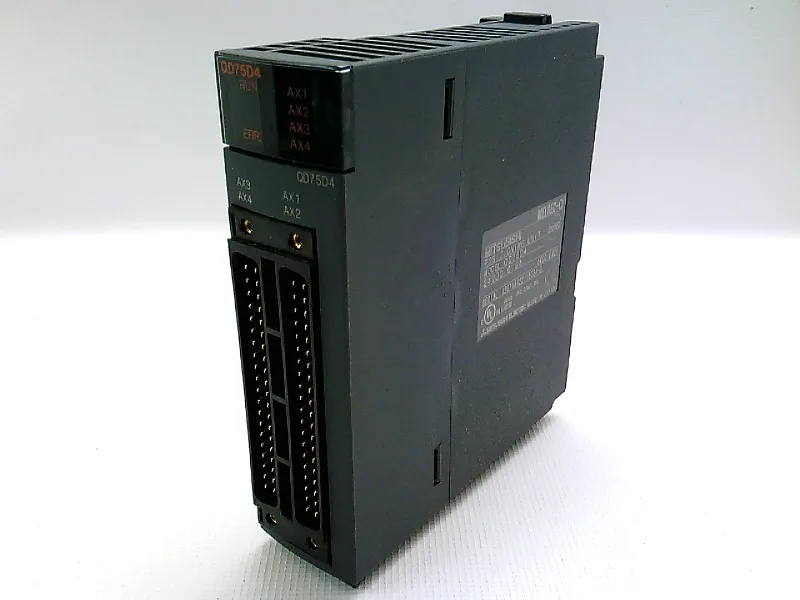

QD75D4 - Mitsubishi Electric
MPNQD75D4
Mitsubishi Positioning Module
$267.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| DC 5 v internal current consumption | 0.82 A |
| Applicable connector | A6CON1, A6CON2, A6CON4 (sold separately) |
| External wiring connection method | 40 pin connector × 2, differential driver common terminal |
| Maximum connection distance between servos | 10 m |
| Depth | 90 mm |
| Width | 27.4 mm |
| Shipping weight | 1.2 Kg |
| External dimensions height | 98 mm |
| Mass | 0.16 kg |
| Backup | Parameter, positioning data, block start data can be saved in flash ROM (battery less) |
| Control unit | mm, inch, degree, pulse |
| Manufacturer | Mitsubishi Electric |
All specifications+31 ▾
| Parameter | Value |
|---|---|
| Control method | PTP (Point To Point) control trajectory control (both linear and arc configurable) Speed ??control Speed ??/ position switching control position / speed switching control |
| Speed ??command | 0.01 to 20000000.00 mm / min 0.001 to 2000000.000 inch / min 0.001 to 2000000.000 deg / min 1 to 1000000 pulse / s |
| Increment method | -214748364.8 to 214748364.7 µm · -21474.83648 to 21474.83647 inch · -21474.83648 to 21474.83647 degrees · -2147483648 to 2147483647 pulse |
| Positioning data | 600 data / axis |
| Positioning method | PTP control : Increment method / absolute method |
| Trajectory control | Increment method / absolute method |
| Estimated lead time | Usually ships in 1-10 working days. |
| Pulse output method | Differential output |
| 1 axis speed control | 6 ms |
| 2 axis speed control | 6 ms |
| 3 axis speed control | 6 ms |
| 4 axis speed control | 7 ms |
| Maximum output pulse | 1 M pulse / s |
| Interpolation function | 2 axis, 3 axis, 4 axis linear interpolation, 2 axis circular interpolation |
| Number of control axes | 4 axes |
| Sudden stop deceleration time | 1 to 8388608 ms |
| Number of occupied i (O points) | 32 points (I / O assignment: 32 points of intelligence) |
| Positioning range absolute method | · -214748364.8 to 214748364.7 µm · -21474.83648 to 21474.83647 inch · 0 to 359.99999 degree · -2147483648 to 2147483647 pulse |
| Acceleration and deceleration time | 1 to 8388608 ms Four patterns can be set for both acceleration time and deceleration time |
| Factors that increase startup time | In the case of the following conditions, add the time stated below. · When S-curve acceleration / deceleration selection: 0.5 ms · When other axis is in operation: 1.5 ms · For continuous positioning control : 0.2 ms · For continuous trajectory control: 1.0 ms |
| Position (speed switching control) | Increment method |
| 4 axis linear interpolation control | 7 ms |
| Speed ?? (position switching control) | Increment method / absolute method |
| 2 axis circular interpolation control | 7 ms |
| Start time single axis linear control | 6 ms |
| Acceleration (deceleration processing) | Trapezoidal acceleration / deceleration, S-shaped acceleration / deceleration |
| Speed ?? (position switching control (ABS mode)) | · 0 to 359.99999 degree |
| Biaxial linear interpolation control (Composite speed) | 7 ms |
| Three-axis linear interpolation control (synthesis speed) | 7 ms |
| 2 axis linear interpolation control (Reference axis speed) | 7 ms |
| Three-axis linear interpolation control (reference axis speed) | 7 ms |
