Mitsubishi Electric QD75D4N

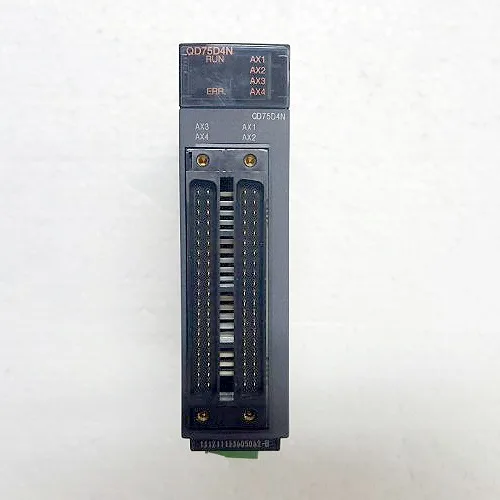

Mitsubishi QD75D4N 4-Axis Positioning Unit, 1Mbps

MPN QD75D4N

Mitsubishi MELSEC Q Series QD75D4N positioning unit, differential driver output type, 4-axis control, 1 Mbps maximum output pulse.

$509.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

QD75D4N specifications
ParameterValue
Maximum connection distance between servos10 m
Weight0.16 kg
Pulse output methodDifferential output

Product details

The Mitsubishi QD75D4N is a 4-axis positioning module for the MELSEC Q Series, using differential driver output for noise-resistant pulse trains up to 1 Mbps. It controls speed using pulse-train output and supports linear interpolation on 2 to 4 axes, circular interpolation on 2 axes, and helical interpolation on 3 axes — enough coordinated motion for pick-and-place, gantry, or rotary stations without an external motion controller. Per-axis storage holds 600 positioning data points, and a built-in parameter-backup feature retains that data across power cycles, so you avoid re-teaching after a line restart. Maximum cable length between the module and each servo drive is 10 m, which suits typical panel-to-machine reach without a repeater.

For a BOM line specifying a Q-series 4-axis differential-output positioning module, this is the exact fit. Source via RFQ; no substitute is required.

MPN
QD75D4N
