Mitsubishi Electric QD75MH2

Mitsubishi QD75MH2 Positioning Module, 2 Axes, 1.77ms

MPN QD75MH2

Mitsubishi Q-Series QD75MH2 positioning module, 2-axis, 1.77 ms operation cycle, SSCNET III interface.

$705.12 – $745.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Product details

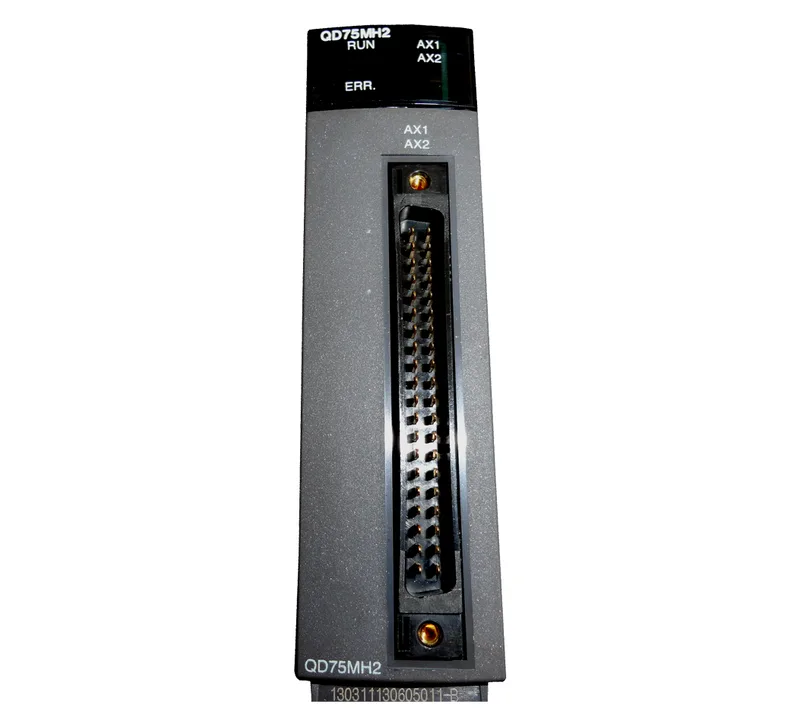

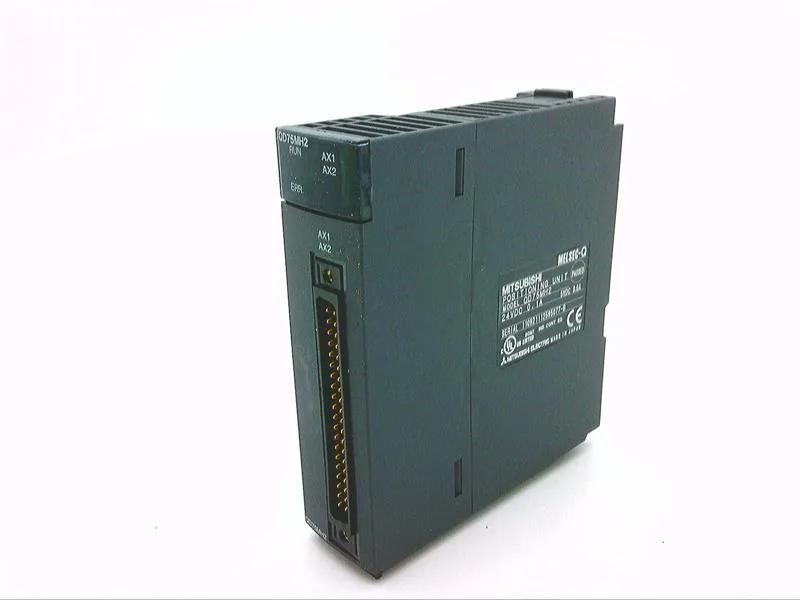

The QD75MH2 is a Mitsubishi Q-Series positioning module that drives up to 2 axes of servo motors via SSCNET III, with an operation cycle of 1.77 ms—half that of the previous generation. That speed improvement directly reduces positioning time on multi-step moves, which matters for pick-and-place or assembly indexing. It stores 600 positioning data sets per axis, which gives flexibility for complex sequences without constant PLC intervention. The forced stop input (24 VDC, 1 point per module) provides an independent safety channel that can be wired directly to an E-stop circuit. External I/F includes upper/lower stroke limits, proximity dog, and stop/speed-position switching signals—all at 24 VDC. There is also a manual pulse generator interface (A-phase/B-phase, 5 VDC). These are standard for incremental encoder override. The module is designed exclusively for Mitsubishi General-Purpose AC servo amplifiers from the MR-J3-B series, connected via high-speed serial communication.

Integration notes

Mounts in a Q-series backplane. The forced stop input is a single point per module—plan a separate safety relay if multiple modules need coordinated stop logic. The manual pulse generator interface runs on 5 VDC, so ensure the encoder is compatible. SSCNET III cabling uses dedicated optical fiber; maximum distance per cable segment is covered in the manual. No external terminator needed; the module handles termination internally.

MPN
QD75MH2
