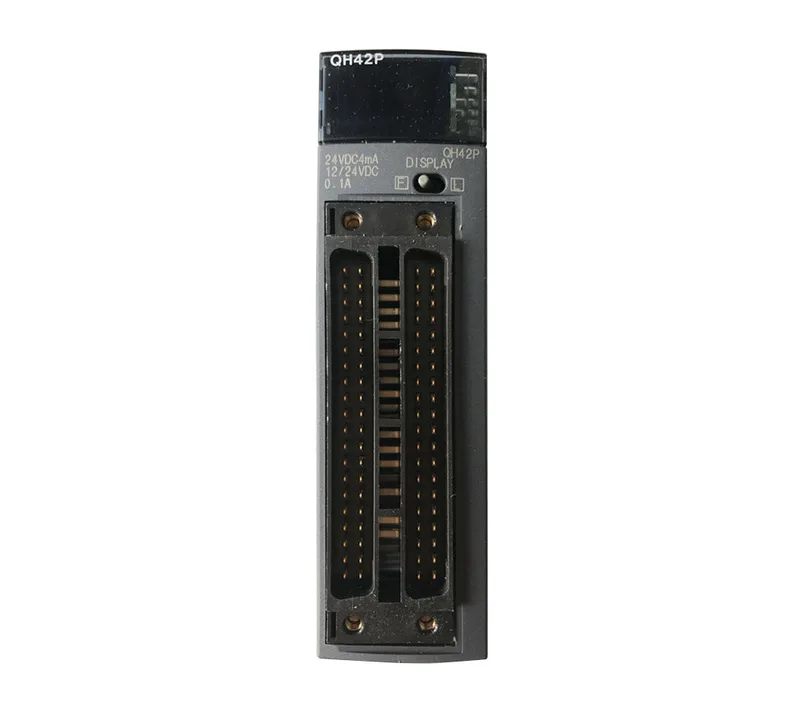

Mitsubishi Electric QH42P — PLC I/O & Expansion Modules

QH42P I/O Combined Module, 32 Inputs, 24 VDC

MPNQH42P

Mitsubishi QH42P I/O Combined Module, 32 input points, 24 VDC, photocoupler isolation, 560 VAC dielectric withstand.

$120.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

QH42P key specifications
ParameterValue
Product typeI/O Combined Module
Rated input voltage24VDC (+20/-15%, ripple ratio within 5%)
ON voltage (ON current)19V or higher/3mA or higher
OFF voltage (OFF current)11V or lower/1.7mA or lower
Dielectric withstand voltage560VAC rms/3 cycles (altitude 2000m)
Rated input current approx.4mA
Internal current consumption (5VDC)130mA (TYP, all points ON)
Applicable connectorA6CON1, A6CON2, A6CON3, A6CON4 (optional)
Applicable wire size0.088 to 0.3mm2 (For A6CON1 or A6CON4) 3
External connections40-pin connector
Common terminal arrangement32 points/common (common terminal: 1B01, 1B02)
Applicable connector (terminal block converter module)A6TBXY36, A6TBXY54, A6TBX70

All specifications

QH42P additional specifications
ParameterValue
Weight0.2 Kg
Shipping weight1 Kg
Input resistanceApprox. 5.6k?
Isolation methodPhotocoupler
Protection degreeIP2X
Estimated lead timeUsually ships in 1-10 working days..
Operation indicatorON indication (LED), 32-point switchover using switch 2
Insulation resistance10M? or more by insulation resistance tester
Number of input points32 points
Number of occupied i (O points)32 points (I/O assignment is set as a 32-point I/O combined module.)

Product details

The QH42P is a 32-point I/O combined module with 24 VDC input, ±20%/-15% tolerance, and a ripple limit of 5%. Photocoupler isolation between field and logic keeps noise off the backplane. Each input draws roughly 4 mA at rated voltage, and the ON threshold sits at 19 V / 3 mA; OFF drops below 11 V / 1.7 mA.

Integration notes

External connection is via a 40-pin connector; optional A6CON1 through A6CON4 connectors accept wire sizes 0.088 to 0.3 mm². For terminal-block conversion, the A6TBXY36, A6TBXY54, or A6TBX70 modules are compatible. The module occupies 32 I/O points and draws 130 mA from the 5 VDC backplane supply with all inputs ON. Dielectric withstand is 560 VAC rms for 3 cycles at 2000 m altitude.

MPN
QH42P
