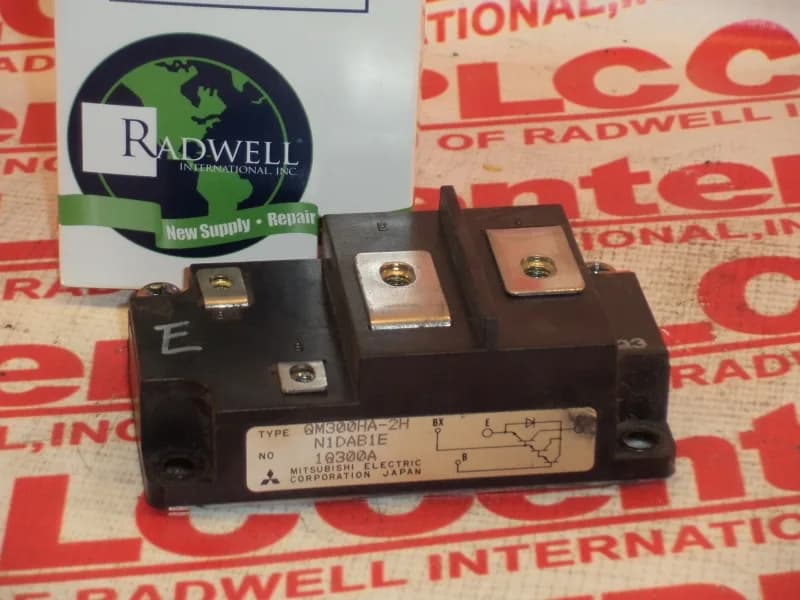

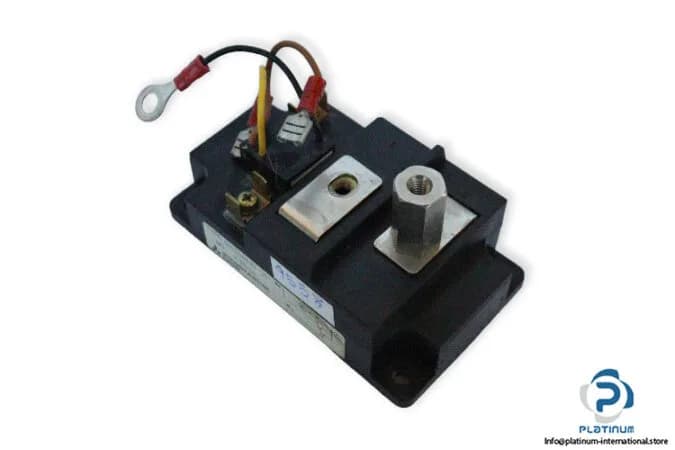

Mitsubishi Electric QM300HA2H, transistor module, 1000 V VCE, 300 A IC, 1.85 V VCEO.
| Parameter | Value |
|---|---|
| Manufacture | Mitsubishi Electric |
| Voltage | 1.85 |
| V<Sub>Ce</Sub>=1000V, V<Sub>Eb</Sub>=2V | 4 mA |

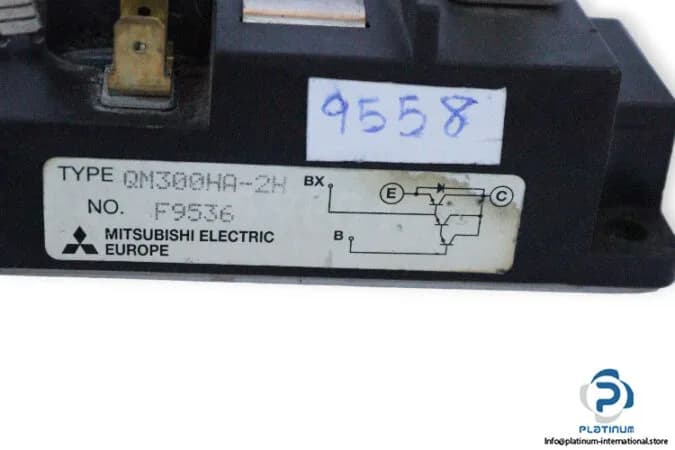

The QM300HA2H: Rated 1000 V VCE and 300 A IC at a VCEO of 1.85 V — this Mitsubishi Electric module handles the high-current side of a DC bus or inverter output stage. The F9536 ties it to Mitsubishi's internal numbering.
Lifecycle stage listed as mature. No official last-time-buy posted. This part is quoted to order through our sourcing desk — expect limited factory-run availability, but we can pull it from our network against an RFQ.
The peer QM300HA-2H carries the same 1000 V VCE, 300 A IC, and 1.85 V VCEO ratings. They are functionally identical and can be used interchangeably.
Yes. The ratings match exactly — VCE 1000 V, IC 300 A, VCEO 1.85 V — so it is a direct drop-in replacement.
