The Mitsubishi QM30DY-2H transistor module handles 30 A continuous collector current and blocks up to 1000 V collector-emitter. Rated for 3-pole operation, it runs from -40 to 150 °C — so it keeps switching reliably even in a hot cabinet. This unit is in used condition; we can source it to your order against an RFQ.

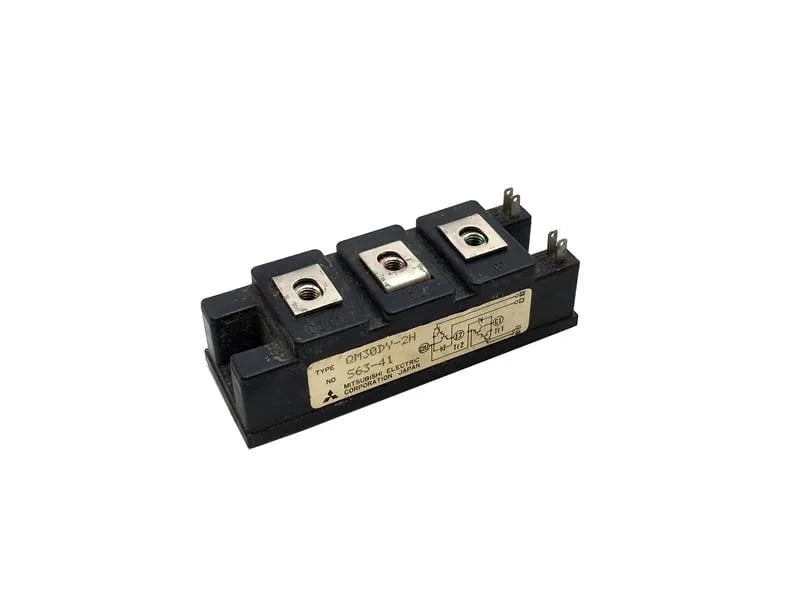

Mitsubishi QM30DY-2H Transistor Module, 30A 1000V
MPNQM30DY-2H
Mitsubishi QM30DY-2H Transistor Module, 30 A, 1000 V, 3-Pole, -40…150 °C.
$223.39Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Transistor Module |
| Type of product | Transistor Module |
| Collector-Emitter voltage (V<sub>CEX< (sub>)) | 1000 V |
| Collector current (I<sub>C< (sub>)) | 30 A |
| Poles | 3-Pole |
| Weight | 0,2 kg |
| Dimensions | 94 x 34 x 22.5 mm |
| Model | QM30DY-2H |
| Condition | Used |
| Shelf no. | 240324 , 240924 |
| Operating temperature | -40 … 150 °C |
| Manufacturer | Mitsubishi |
Product details
MPN
QM30DY-2H
