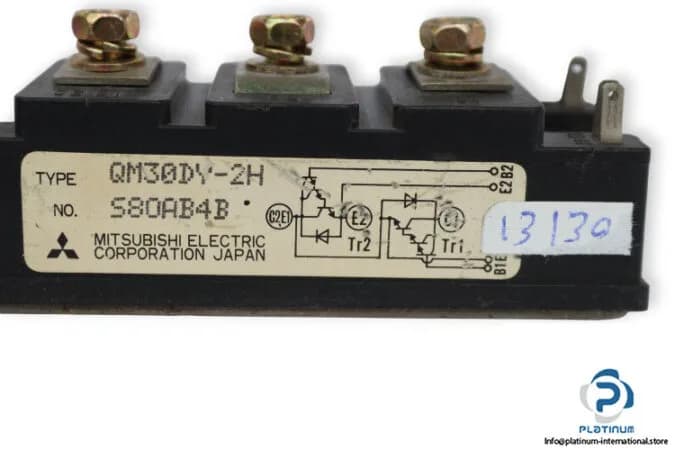

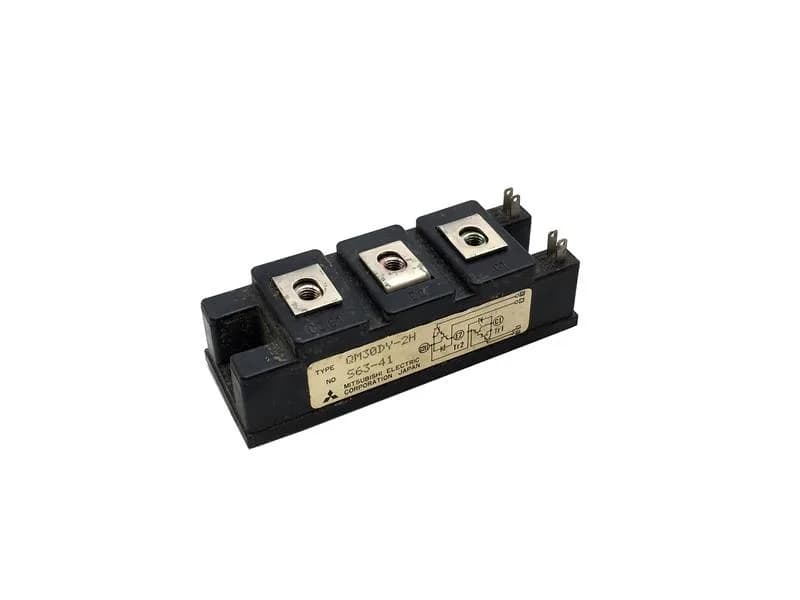

Mitsubishi QM30DY2H transistor module, 3-pole, 1000 V, 30 A, 94 x 34 x 22.5 mm, -40 to 150 °C.
| Parameter | Value |
|---|---|
| Poles | 3 |
| Dimensions_text | 94 x 34 x 22.5 mm |
| Voltage | 1000 |
| Switching current | 30 |
| Operating temperature high | -40 … 150 °C |
The Mitsubishi QM30DY2H is a 3-pole transistor module rated for 1000 V collector-emitter voltage and 30 A collector current. It fits applications like motor drives, inverters, and power supplies where a rugged, isolated power switch is needed. Dimensions are 94 x 34 x 22.5 mm, with an operating temperature range of -40 to 150 °C.
The QM30DY-2H is functionally identical, with the same voltage, current, pole count, dimensions, and temperature range.
It is a 3-pole transistor module rated for 1000 V collector-emitter voltage and 30 A collector current, with dimensions 94 x 34 x 22.5 mm and an operating temperature range of -40 to 150 °C.
Yes, because both modules share the same dimensions, mounting footprint, and electrical ratings, making them direct physical and functional substitutes.
