The QM400HA2H: The Mitsubishi QM400HA-2H is a transistor module rated for 400 A collector current and 1000 V collector-emitter voltage, suited for high-power switching in industrial drives, inverters, and power supplies. Ambient temperature range is -40 to 150 °C, covering typical thermal environments with appropriate derating.

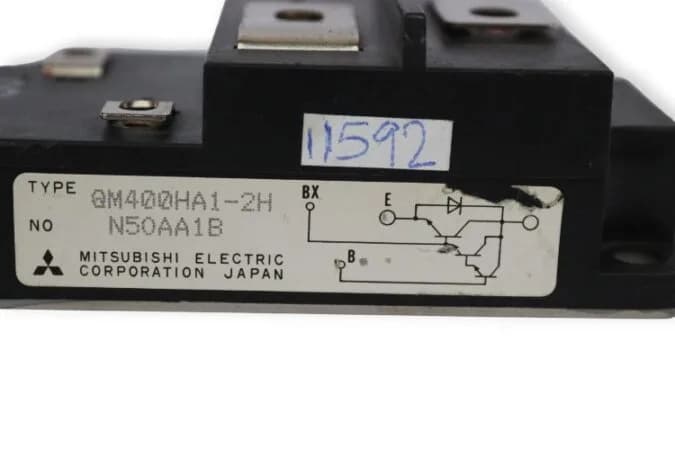

Mitsubishi QM400HA2H Transistor Module, 400A 1000V
MPNQM400HA2H
Mitsubishi QM400HA-2H transistor module, 400 A collector current, 1000 V collector-emitter voltage.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0,44 kg |
| Parameter | Value |
|---|---|
| Type | Transistor Module |
| Model | QM400HA-2H |
| Condition | Used |
| Poles no. | 4-Pole |
| Shelf no. | 241224 |
| Dimensions | 90 x 113 x 30 mm |
| Type of product | Transistor Module |
| Alternative model | N50AA1B |
| Collector current | 400 A |
| Operating temperature | -40 … 150 °C |
| Collector-Emitter voltage max. | 1000 V |
Product details
Frequently asked questions
What is QM400HA2H's listed type?
It is a Transistor Module (model QM400HA-2H).
What is QM400HA2H's listed model?
The model is QM400HA-2H.
MPN
QM400HA2H
