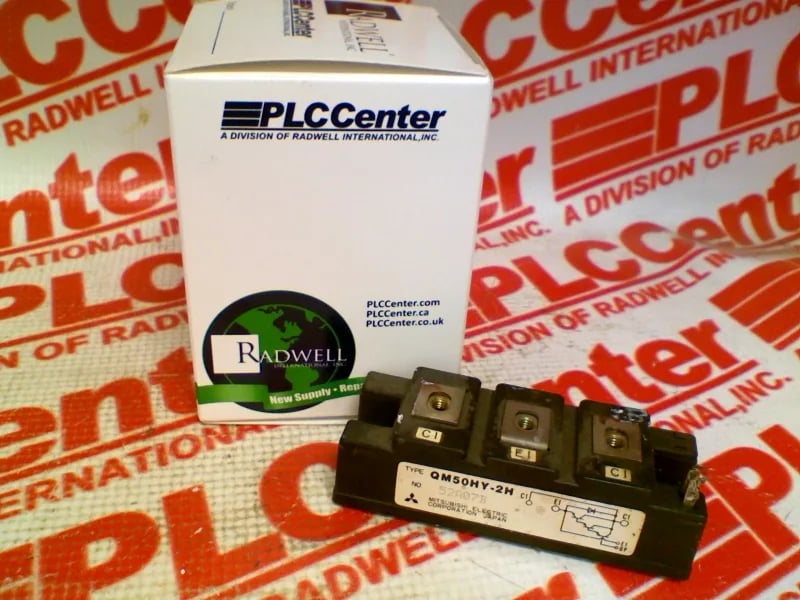

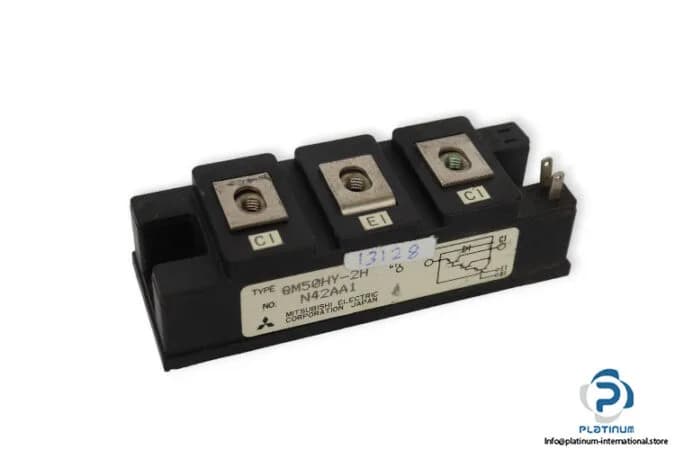

Mitsubishi QM50HY-2H series transistor module, QM50HY2H, 3-pole, 50 A switching current, 1000 V rated voltage. 94 x 34 x 22.5 mm.
| Parameter | Value |
|---|---|
| Poles | 3 |
| Dimensions_text | 94 x 34 x 22.5 mm |
| Voltage | 1000 |
| Switching current | 50 |
| Operating temperature high | -40 … 150 °C |
The QM50HY2H is a Mitsubishi 3-pole transistor module rated for 50 A switching current and 1000 V collector-emitter voltage. It measures 94 x 34 x 22.5 mm and operates from -40 to 150 °C. Use it as a direct replacement for the QM50HY-2H — same footprint, same electrical ratings.
50 A switching current, 1000 V collector-emitter voltage, 3 poles. Temperature range -40 to 150 °C. Dimensions 94 x 34 x 22.5 mm.
Yes. The ratings, dimensions, and footprint are identical. It is a drop-in replacement — no wiring or mounting changes required.

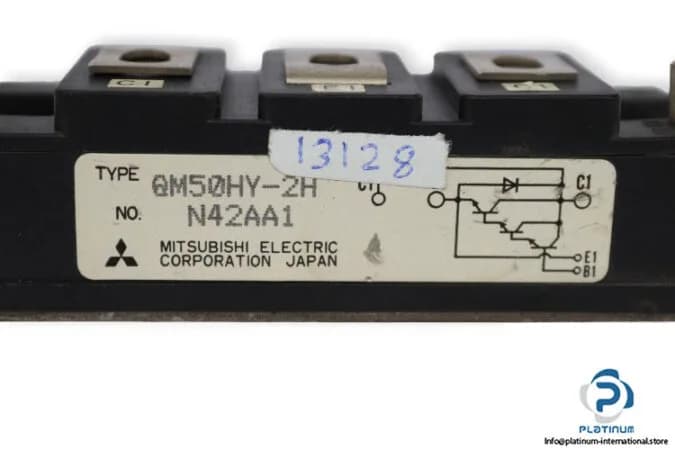

N42AA1 is listed as an alternate part number for this module. Verify electrical and mechanical match against your specific application before substitution.
