Analog Output Module for iQ-R — Quick Fit Check

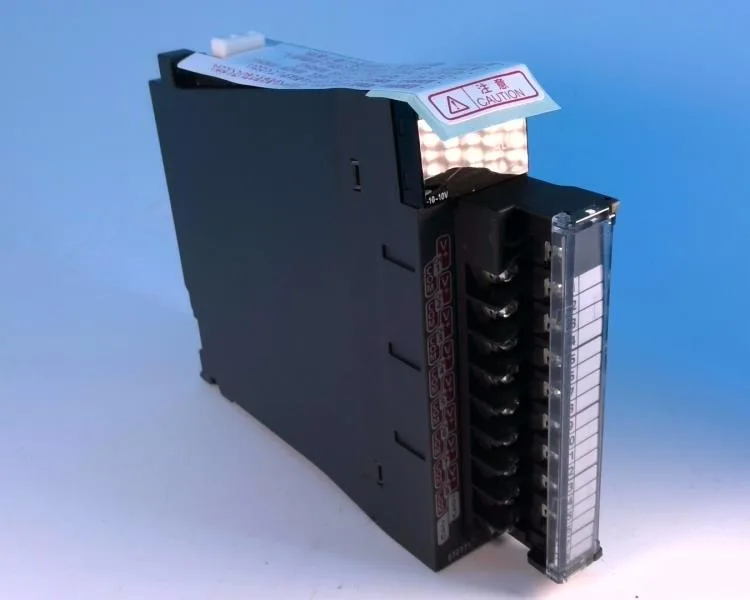

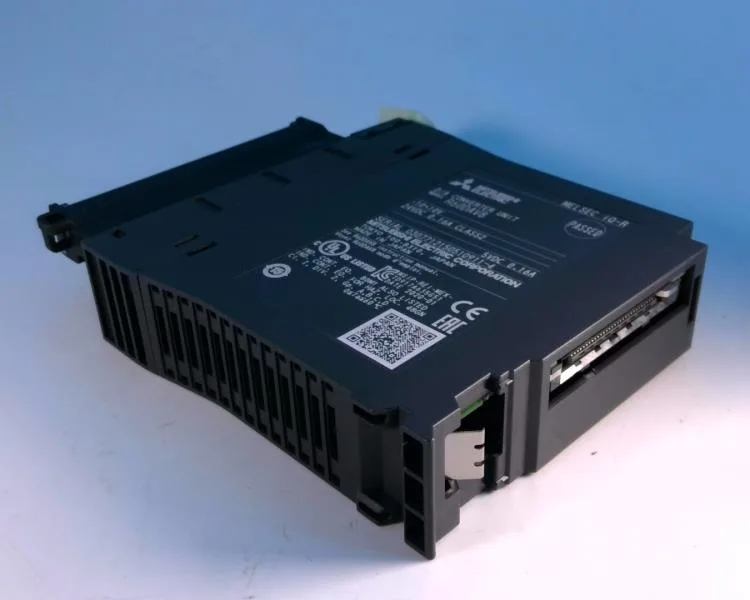

R60DAV8 is a D/A converter in the MELSEC iQ-R series with 8 analog outputs (-10-10 V, 0-5 V, 1-5 V). It draws 0,16 A from 24 V DC backplane, occupies 16 I/O points, fits a 27,8 mm wide slot.
Voltage vs Current Output: R60DAV8 vs R60DAI8
The closest peer to the R60DAV8 is the R60DAI8. Both share the same size (27,8 x 106 x 131 mm), screw terminals, 24 V DC draw, and 16 I/O points. The difference: R60DAI8 outputs 0-20/4-20 mA, R60DAV8 outputs voltage.
Lifecycle & Compliance — Production Status and Certifications
The R60DAV8 is in active current production (lifecycle stage: current), so no last-time-buy worries. It carries CE, EAC, UL/cUL, and RoHS compliance marks, plus REACH declaration (substance limit exceeded, CAS numbers 68-12-2, 2451-62-9, 7439-92-1). WEEE classification is B2B. For marine or offshore applications, the module holds shipping approvals from ABS, BV, DNV GL, LR, NK, and RINA — that covers most classification societies out here in the grease.
Sourcing — Current Production, Short Lead, Quoted to Order
This module is an active catalogue item, so sourcing is straightforward: submit an RFQ and we'll quote against your schedule. Estimated lead time is 1-10 working days from order placement. No lifecycle obsolescence to track, no cross-reference needed — it's the voltage output module for the iQ-R line. If you need the current output version instead, ask for R60DAI8 on the same RFQ.
