Small drive, one‑phase in – what it means for a field swap

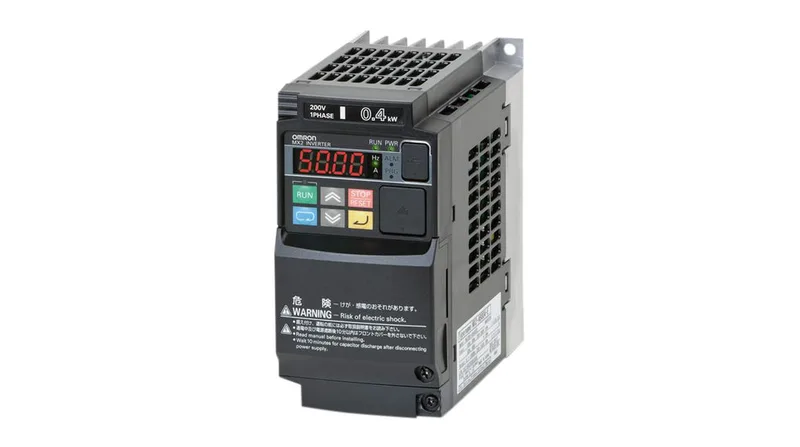

The 3G3MX2AB002EV2 is a 200 W inverter in the MX2 family, taking single‑phase 200–240 V and driving a three‑phase motor up to 1.6 A. Output frequency stretches from 0 to 400 Hz, so it handles small conveyors, fans, or pump applications that need variable speed. The carrier frequency is adjustable between 2 and 15 kHz – useful for dialling down motor noise in a quiet space. Communication is MODBUS RTU over RS485 plus a USB port for quick laptop connection – no extra gateway needed for a common PLC setup. The digital inputs are 24 VDC, and there's one relay output and a 0–10 V analogue output. All wiring lands on screw terminals.
Sourcing this one
Lifecycle stage is current. No end‑of‑life notice. Get it into the BOM with confidence.
