Omron 61F-GP-N AC100 — General Purpose Relays

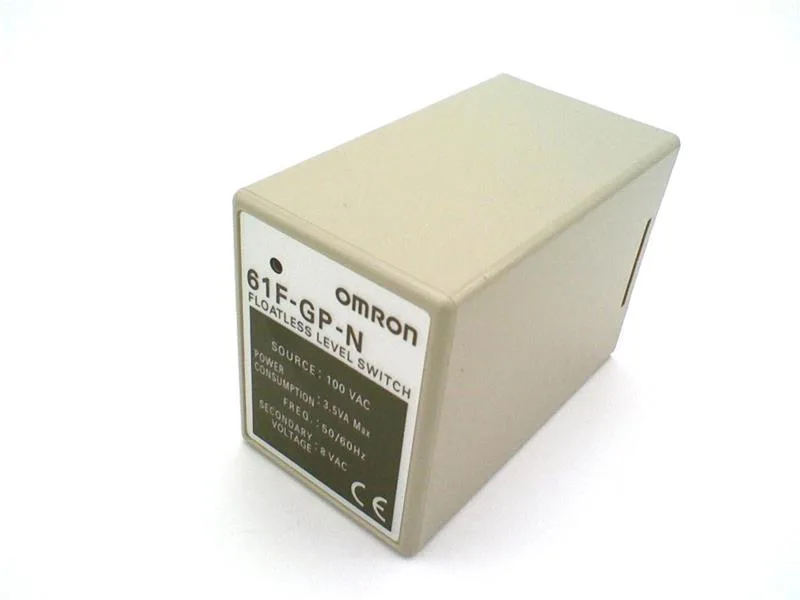

Omron 61F-GP-N AC100 Level Controller, High/Low Level, 100VA

MPN61F-GP-N AC100
Obsolete

Omron 61F series, High/Low Level conductive level controller, 100VAC supply, SPDT relay output, 0-4kOhm sensitivity, socketable 11-pin octal, 1km max sensor distance.

$319.74 – $689.90Ref. price · indicative, final on quote
Omron 61F-GP-N AC100 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

61F-GP-N AC100 — Identification
ParameterValue
Series61F
61F-GP-N AC100 — Contacts & Switching
ParameterValue
Contact formSPDT (2 Form C)
Contact rating at voltage3A @ 250VAC
61F-GP-N AC100 — Coil & Supply
ParameterValue
Supply voltage range100VAC
61F-GP-N AC100 — Function & Indication
ParameterValue
TypeHigh/Low Level
61F-GP-N AC100 — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In, 11 Pin (Octal)
61F-GP-N AC100 — Environmental
ParameterValue
Operating temperature range-10°C ~ 55°C
61F-GP-N AC100 — Other specifications
ParameterValue
Weight0.342 lb (155.13 g)
FeaturesLevel Indication
Output signalRelay
Sensitivity0 ~ 4kOhm
Distance - control to sensor1km

Product details

The Omron 61F-GP-N AC100 is a conductive level controller in the 61F series, configured as a High/Low Level type. It operates on 100 VAC supply and detects liquid level through two or three probe electrodes, with sensitivity adjustable from 0 to 4 kOhm. The SPDT relay output (2 Form C) is rated for 3 A at 250 VAC, suitable for driving a pump valve or alarm directly. Control distance from the controller to the sensor probes reaches up to 1 km, which covers long tank runs in water treatment or chemical storage. The 11-pin octal plug-in base (socketable) means replacement takes seconds — pull the old unit, plug the new one, no rewiring.

The 61F series is a mature, long-running Omron line with broad installed base.

Frequently asked questions

Where can I buy 61F-GP-N AC100?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the closest pin-compatible alternative to 61F-GP-N AC100?

Within the 61F series, the 61F-GP-N AC200 operates on 200 VAC with the same 11-pin octal base, SPDT relay, and 0-4 kOhm sensitivity — pin-compatible if your supply voltage matches. For 24 VAC/VDC systems, the 61F-GP-N AC24 uses the same socket and probe connections.

What is 61F-GP-N AC100's listed type?

It is a High/Low Level type controller, meaning it detects both high and low liquid levels and can operate a pump to fill or drain a tank between two setpoints.

What compliance documentation does Omron provide for 61F-GP-N AC100?

Omron typically provides a Declaration of Conformity covering the Low Voltage Directive and EMC Directive for the 61F series. RoHS and REACH compliance statements are available on request. Specific UL/CSA file numbers vary by variant; confirm at quote time.
