Omron 61F-GP-NH3 AC200 — General Purpose Relays

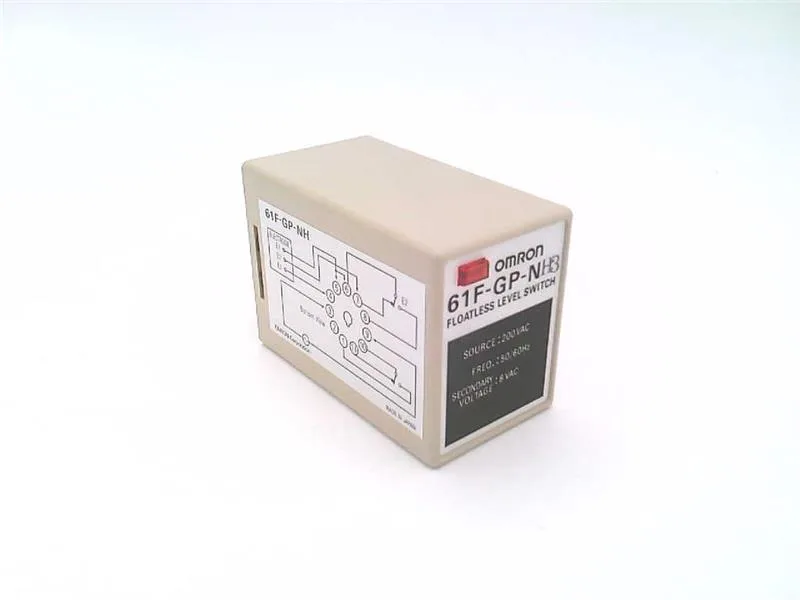

Omron 61F-GP-NH3 AC200 Level Controller, 200VAC, Socketable

MPN61F-GP-NH3 AC200
Active

Omron 61F series, High/Low Level Controller, 200VAC supply, sensitivity 0~200kOhm, socketable with 11-pin octal plug, 30m max control-to-sensor distance.

$400.87 – $844.87Ref. price · indicative, final on quote
Omron 61F-GP-NH3 AC200 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

61F-GP-NH3 AC200 — Identification
ParameterValue
Series61F
61F-GP-NH3 AC200 — Coil & Supply
ParameterValue
Supply voltage range200VAC
61F-GP-NH3 AC200 — Function & Indication
ParameterValue
TypeHigh/Low Level
61F-GP-NH3 AC200 — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In, 11 Pin (Octal)
61F-GP-NH3 AC200 — Environmental
ParameterValue
Operating temperature range-10°C~55°C
61F-GP-NH3 AC200 — Other specifications
ParameterValue
Weight0.342 lb (155.13 g)
Sensitivity0 ~ 200kOhm
Distance - control to sensor30m

Product details

Level Controller for Tank Fill/Drain Logic

The Omron 61F-GP-NH3 AC200 is a High/Low level controller from the 61F series, operating on a 200VAC supply. It detects liquid level through electrode probe resistance, with a sensitivity range of 0 to 200kOhm — meaning it triggers on the conductivity change between full and empty probes, not on a fixed resistance threshold. The 30m maximum distance between controller and sensor electrodes allows remote tank monitoring across a plant floor.

Socketable Integration for Panel Wiring

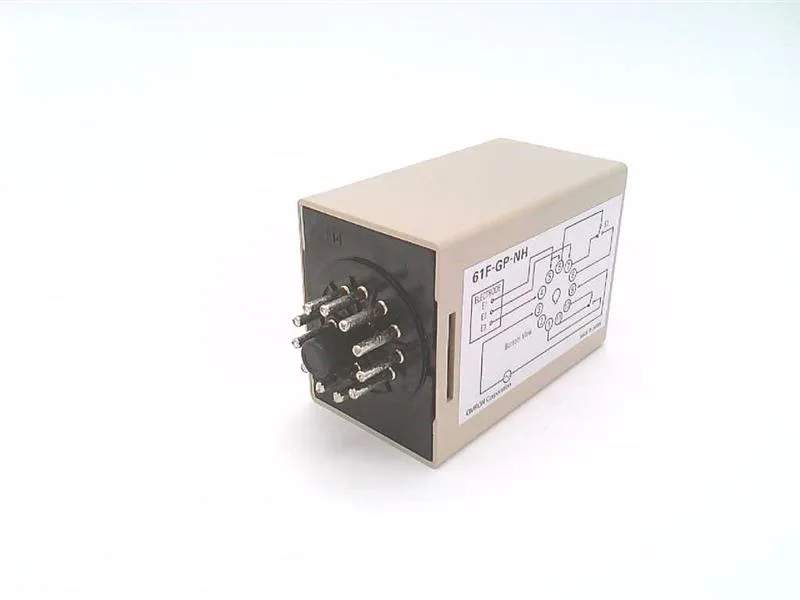

Mounts via an 11-pin octal socket (PF113A or equivalent), which keeps replacement quick — pull the controller, leave the wiring on the socket. The plug-in termination style suits DIN-rail or panel-mount socket bases, common in pump control panels and water treatment cabinets.

Frequently asked questions

What is the sensitivity range of this level controller?

The sensitivity is adjustable from 0 to 200kOhm, which covers most conductive liquids — water, weak acids, coolants. The High/Low logic handles fill-to-empty cycling.

What is the maximum distance between the controller and the sensor probes?

Up to 30 meters. This allows the controller to be mounted in a central panel while the probes sit in a remote tank.

Where can I buy the 61F-GP-NH3 AC200?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm position.

MPN
61F-GP-NH3 AC200
