Omron 61F-GPN-BC 24VDC — General Purpose Relays

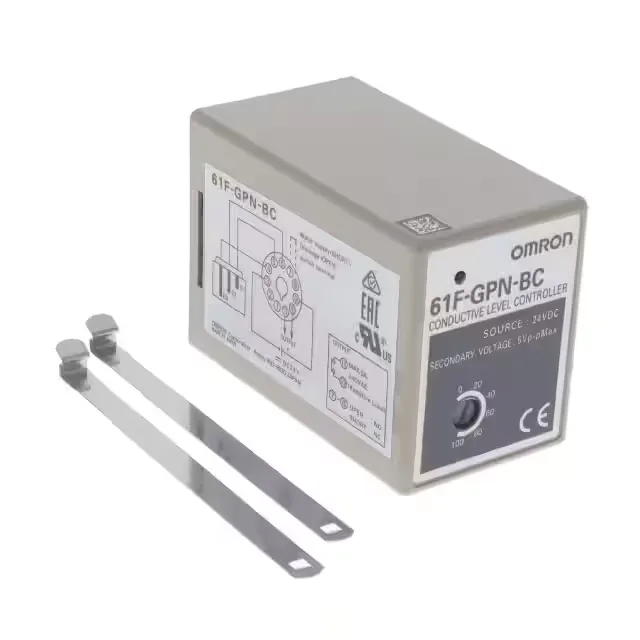

Omron 61F-GPN-BC 24VDC Level Controller, 24VDC, 5A

MPN61F-GPN-BC 24VDC
Active

Omron 61F series, High/Low Level conductive level controller, 24VDC supply, relay output SPST-NO, adjustable sensitivity 0-100kΩ, socketable 11-pin octal.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

61F-GPN-BC 24VDC — Identification
ParameterValue
Series61F
61F-GPN-BC 24VDC — Contacts & Switching
ParameterValue
Contact formSPST-NO (1 Form A)
Contact rating at voltage5A @ 240VAC
61F-GPN-BC 24VDC — Coil & Supply
ParameterValue
Supply voltage range24VDC
61F-GPN-BC 24VDC — Function & Indication
ParameterValue
TypeHigh/Low Level
61F-GPN-BC 24VDC — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In, 11 Pin (Octal)
61F-GPN-BC 24VDC — Environmental
ParameterValue
Operating temperature range-10°C ~ 55°C
61F-GPN-BC 24VDC — Other specifications
ParameterValue
FeaturesAdjustable Sensitivity
Output signalRelay
Sensitivity0 ~ 100kOhm
Distance - control to sensor100m

Product details

The Omron 61F-GPN-BC 24VDC is a conductive level controller from the 61F series, wired as a High/Low Level detector. It runs on 24VDC and switches a relay rated 5A at 240VAC — enough to drive a small pump contactor or alarm directly. The adjustable sensitivity (0 to 100kΩ) lets you tune it for different water conductivities or process fluids; the 100m max distance between controller and sensor probes means the electronics can sit in a dry panel while the probes live at the tank.

Mounts via an 11-pin octal socket (sold separately). The plug-in termination style means a failed unit swaps in seconds without rewiring — critical-spare logic: keep one in the cabinet.

Frequently asked questions

Where can I buy 61F-GPN-BC 24VDC and get a price?

This part is sourced to order against an RFQ through independent industrial-automation distribution. Submit an RFQ for current pricing and availability — confirmed at quote time, not before.

What is the sensitivity range of this level controller?

Adjustable from 0 to 100kΩ. That covers everything from deionized water (high resistance) to conductive process fluids (low resistance). The dial on the front face lets you set the trip point without probe changes.

What is the maximum distance between the controller and the sensor probes?

100 meters. That gives you plenty of separation between the wet tank area and the control panel. The controller's relay output still switches reliably at that distance.
