Omron CJ1W-AD04U — PLCs (Programmable Logic Controllers)

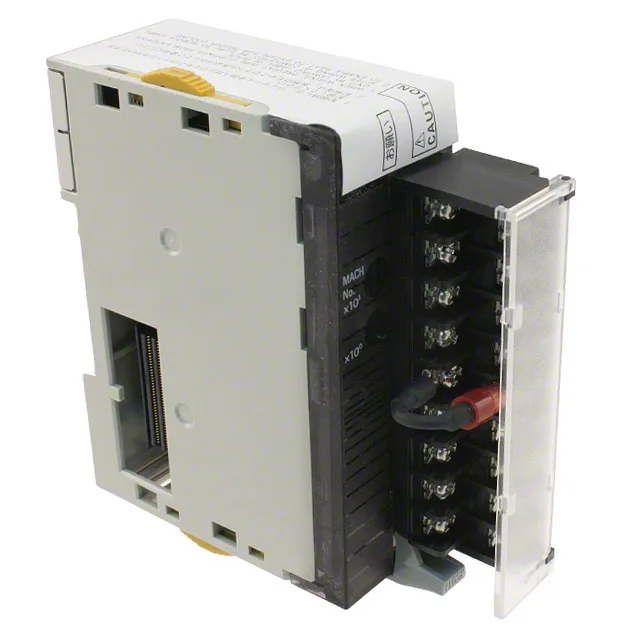

Omron CJ1W-AD04U Analog Input Module, 4-Ch Isolated

MPNCJ1W-AD04U
End of Life

Omron CJ1W-AD04U, Series CJ1W, Type Input Module, 4 - Analog Isolated Universal Input Unit, DIN Rail Mount, Screw Terminal, CE, cULus, Lloyd.

$420.74 – $903.83Ref. price · indicative, final on quote
Omron CJ1W-AD04U datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CJ1W-AD04U — Identification
ParameterValue
SeriesCJ1W
CJ1W-AD04U — I/O
ParameterValue
Inputs (count and type)4 - Analog
CJ1W-AD04U — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CJ1W-AD04U — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.331 lb (150.14 g)
Termination styleScrew Terminal
CJ1W-AD04U — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd
CJ1W-AD04U — Other specifications
ParameterValue
TypeInput Module

Product details

4-Channel Isolated Analog Input for CJ Series

The CJ1W-AD04U: 4-channel analog input module for CJ Series PLC racks — isolated-type universal input unit handles voltage, current, or thermocouple signals per channel. Spans the same backplane slot as other CJ1W I/O modules.

Current Production & Approvals

Approved for industrial control panels with CE and cULus, plus Lloyd’s Register for marine applications.

DIN-Rail Mounting & Screw Termination

Mount on DIN rail inside a CJ-series rack. Wire analog inputs to screw terminals. Isolated per channel reduces ground-loop risk in mixed-signal panels. Input type and range configured via CX-Programmer; no hardware jumpers.

Signal Integrity Note

Isolated-type universal input unit provides signal isolation for each of the 4 analog channels.

Frequently asked questions

What is the closest functional alternative to CJ1W-AD04U?

CJ1W-AD041-V1 is the nearest functional peer — same 4-channel analog input, same form factor and wiring. The main difference is approval: AD041-V1 adds NK marine classification. For non-marine panels the AD04U is a drop-in replacement.

Will CJ1W-AD04U drop into a panel specified for CJ1W-AD041-V1 without rewiring?

Yes — both modules share the same DIN-rail footprint, screw-terminal layout, and CJ1W backplane interface. Rewiring is not required unless the panel specification demands NK approval, which only AD041-V1 carries.
