Omron CJ1W-ID211 — PLCs (Programmable Logic Controllers)

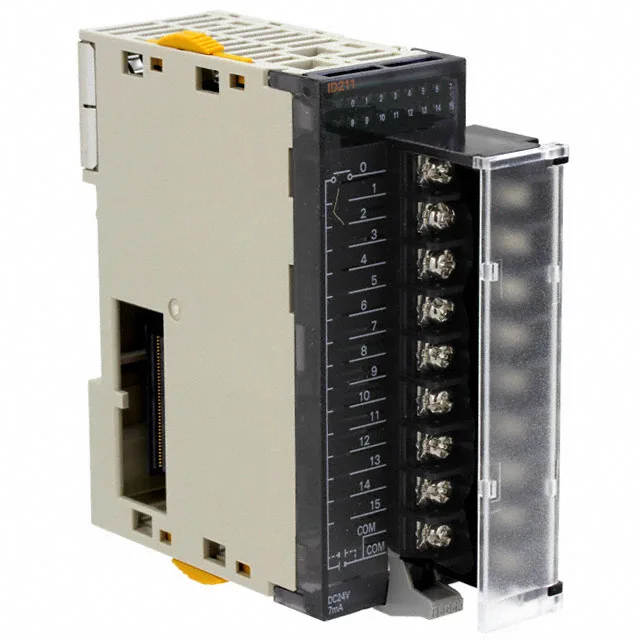

Omron CJ1W-ID211 Input Module, 16-Point DC, DIN Rail

MPNCJ1W-ID211
End of Life

Omron CJ1W series, Input Module, 16 digital DC inputs, DIN Rail mount, Screw Terminal, CE, cULus, Lloyd, NK approved.

$36.00Ref. price · indicative, final on quote
Omron CJ1W-ID211 datasheet (PDF)
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026

Specifications

Identification

CJ1W-ID211 — Identification
ParameterValue
SeriesCJ1W

I/O

CJ1W-ID211 — I/O
ParameterValue
Inputs (count and type)16 - Digital

Mechanical

CJ1W-ID211 — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.243 lb (110.22 g)
Termination styleScrew Terminal

Approvals

CJ1W-ID211 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK

Other specifications

CJ1W-ID211 — Other specifications
ParameterValue
TypeInput Module

Product details

16-point DC input slice for CJ-series racks

16-point digital DC input module for CJ Series PLCs. DIN-rail mount, screw terminals. Approval coverage includes CE, cULus, Lloyd, and NK — the last two being marine-class society approvals (Lloyd's Register and Nippon Kaiji Kyokai). That makes the CJ1W-ID211 a documented choice for shipboard automation or offshore packages where the classification society demands a listed component.

Lifecycle and sourcing posture

Active lifecycle status. Pricing and lead time confirmed at quote against an RFQ.

Panel integration notes

DIN-rail mount, screw-terminal termination. The module snaps onto a standard 35 mm DIN rail inside the control cabinet. The screw terminals accept solid or stranded wire — typical for panel builders who prefer a field-terminable connection over a D-sub or spring-clamp. The 16 inputs occupy one slot on the CJ1W backplane; the module draws its power from the rack, so no separate supply wiring is needed.

Frequently asked questions

What approvals does the CJ1W-ID211 carry?

The module carries CE, cULus, Lloyd (Lloyd's Register), and NK (Nippon Kaiji Kyokai) approvals. The Lloyd and NK marks qualify it for marine and offshore applications where classification society listing is required.

How do I get pricing and availability for the CJ1W-ID211?

Pricing and current availability are confirmed at quote time against an RFQ. Submit a request through the storefront or contact the sourcing desk — the part is sourced through independent distribution and quoted per order.

Will the CJ1W-ID211 drop into a panel specified for CP1W-32ET?

No. The CJ1W-ID211 is a 16-point DC input module for the CJ Series rack, while the CP1W-32ET is a 32-point solid-state output module for the CP1 Series rack. They share a DIN-rail mount and some marine approvals, but the backplane interface and I/O direction are different — rewiring the rack and program would be required.
